Description
Classic 16x2 character LCDs with the I2C controller built onto the board, so each one needs only four wires. Three displays with front bezels.
Highlights

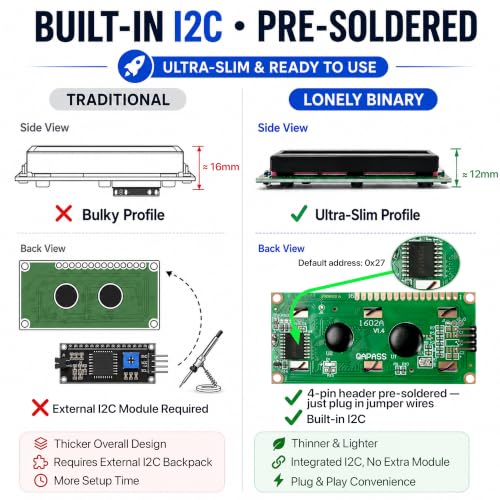

- I2C on board. The PCF8574T sits on the display PCB itself, not on a stacked adapter, keeping the module 12mm thick.
- No soldering. The 4-pin header (VCC, GND, SDA, SCK) is fitted at the factory.

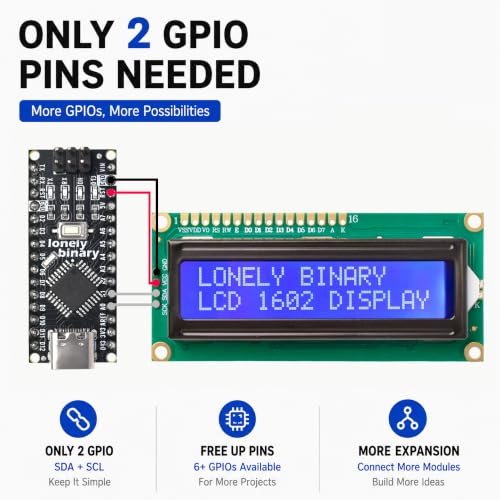

- Two signal pins. Only SDA and SCK, leaving the rest of your GPIO free.
- Three on one bus. The A0–A2 pads change the address from the default 0x27, so all three can share a bus.
- Finished look. Snap-on black bezels hide the PCB edge for panel mounting.

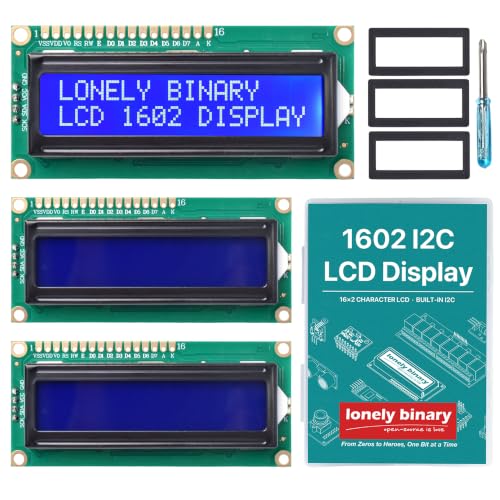

In the box
- 3 × 1602 I2C LCD display, 16x2 blue
- 3 × snap-on black front bezel
- 1 × mini screwdriver for the contrast trimmer
Specifications
- Characters: 16 × 2, white on blue backlight
- Controller: PCF8574T I2C expander
- Supply: 5V
- Default address: 0x27

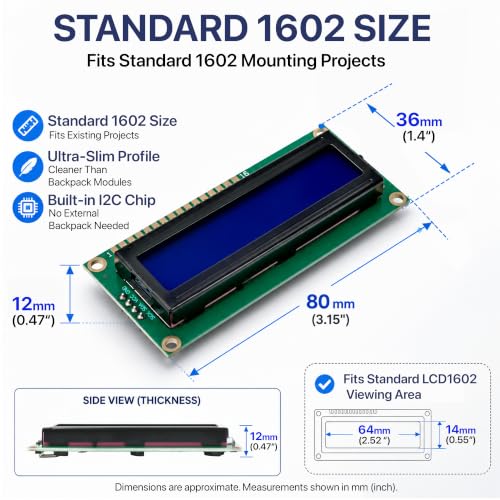

- Thickness: 12mm

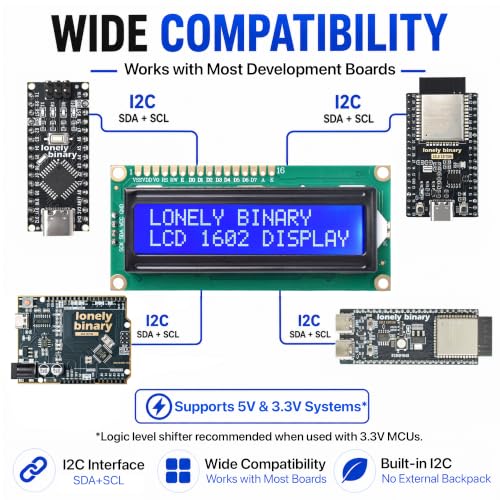

Works with

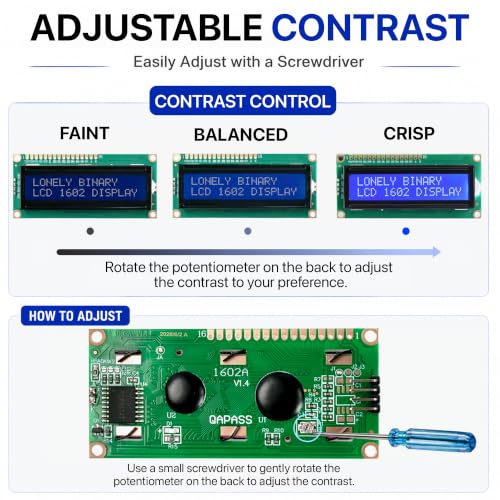

Any board with I2C. With 3.3V boards, a level shifter on SDA and SCK is recommended. If the screen looks blank at first power-up, turn the contrast trimmer.
