Description
Three ATmega328P Nano V3.0 boards with USB-C, plus a PinPulse shield that puts a status LED on every I/O pin. For learning Arduino and debugging circuits at a glance.
Highlights

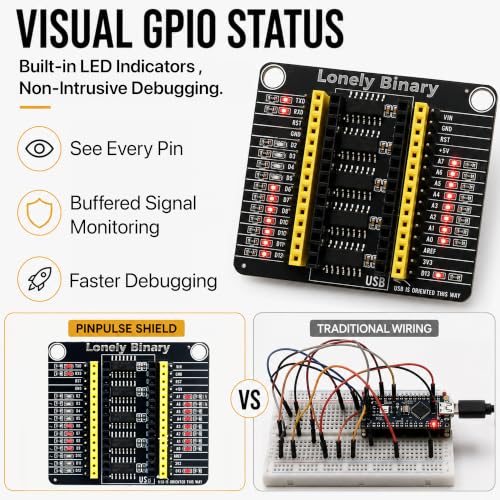

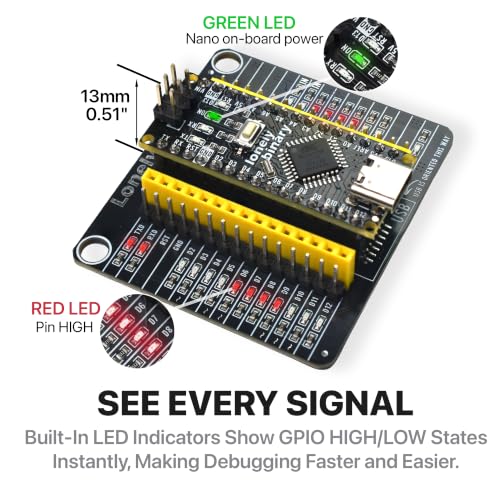

- See every pin. The PinPulse shield shows HIGH or LOW on TX/RX, D2 to D13 and A0 to A7.
- Buffered LEDs. SN74HC04D inverters drive the LEDs, keeping the load off your I2C, SPI and UART signals.

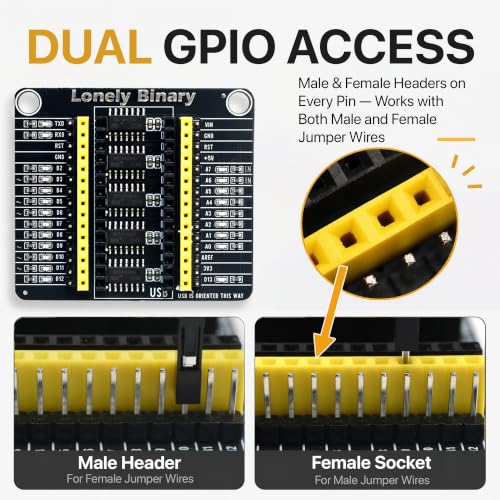

- Male and female on every pin. Dual 2.54 mm headers take any jumper wire type.

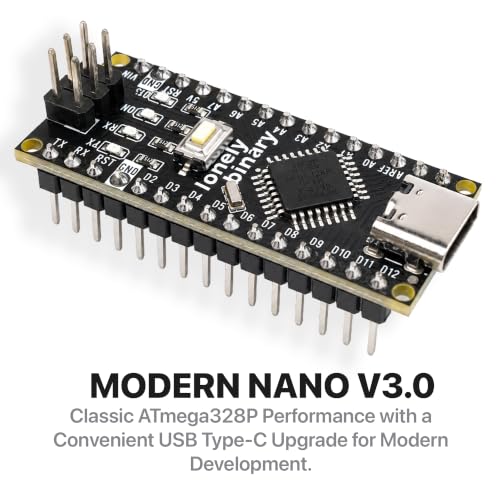

- USB-C. A reversible connector on every Nano.
- Arduino IDE compatible. Existing Nano sketches, libraries and shields work as they are.

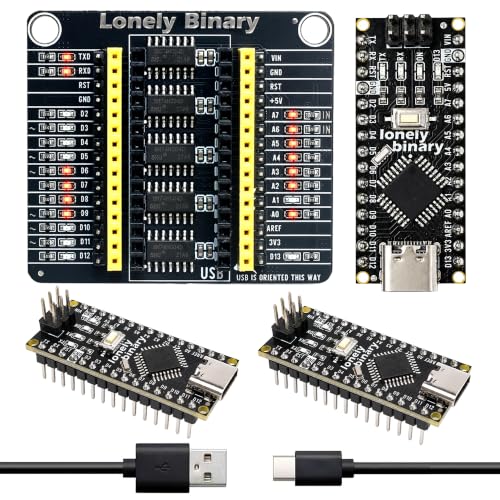

In the box
- 3 × Nano V3.0 board, USB-C
- 1 × PinPulse shield
- 1 × USB-C cable
- 1 × printed quick-start card (CH340 driver and Arduino IDE setup)
Specifications
- Microcontroller: ATmega328P at 16 MHz
- Flash: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
- Digital I/O: 14, 6 with PWM
- Analog inputs: 8
- USB serial: CH340
Works with
Arduino IDE. Sensor and display modules shown in photos are not included.
