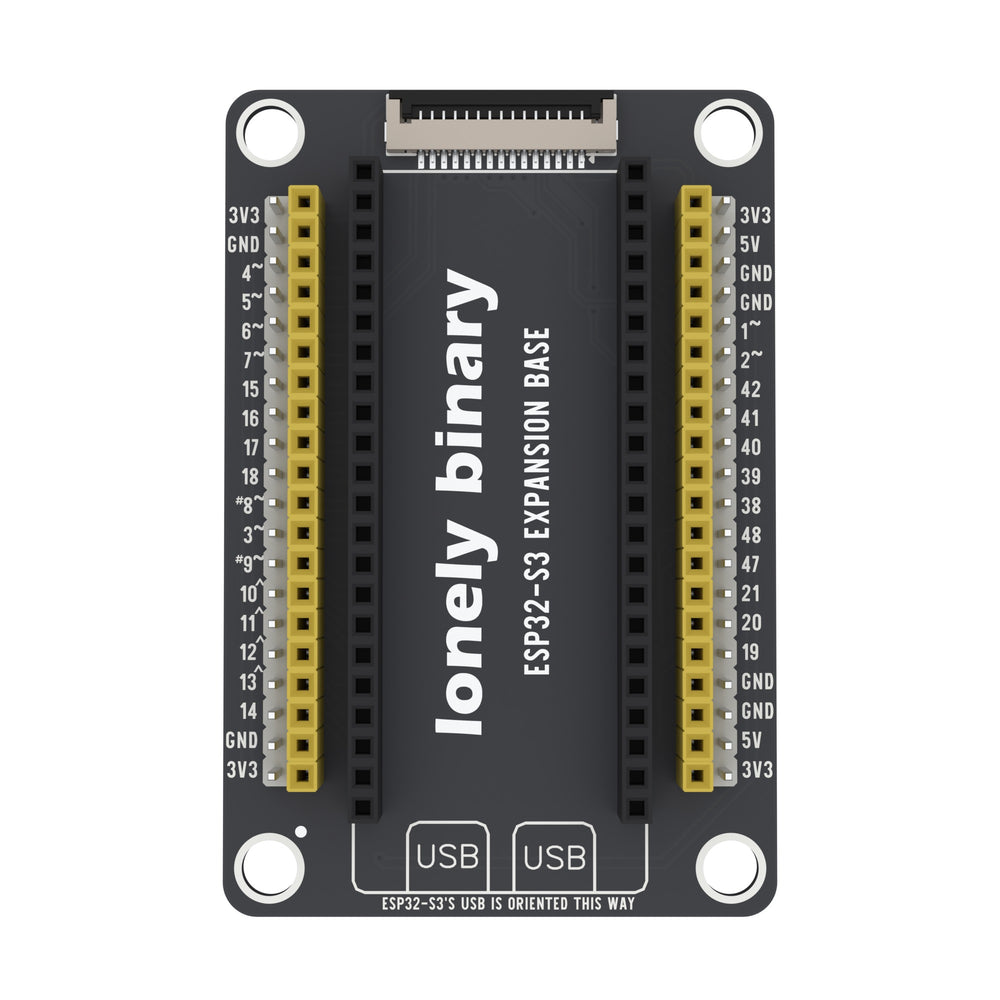

ESP32-S3 Expansion Base seen from above: yellow and white pin headers either side of the ESP32-S3 sockets

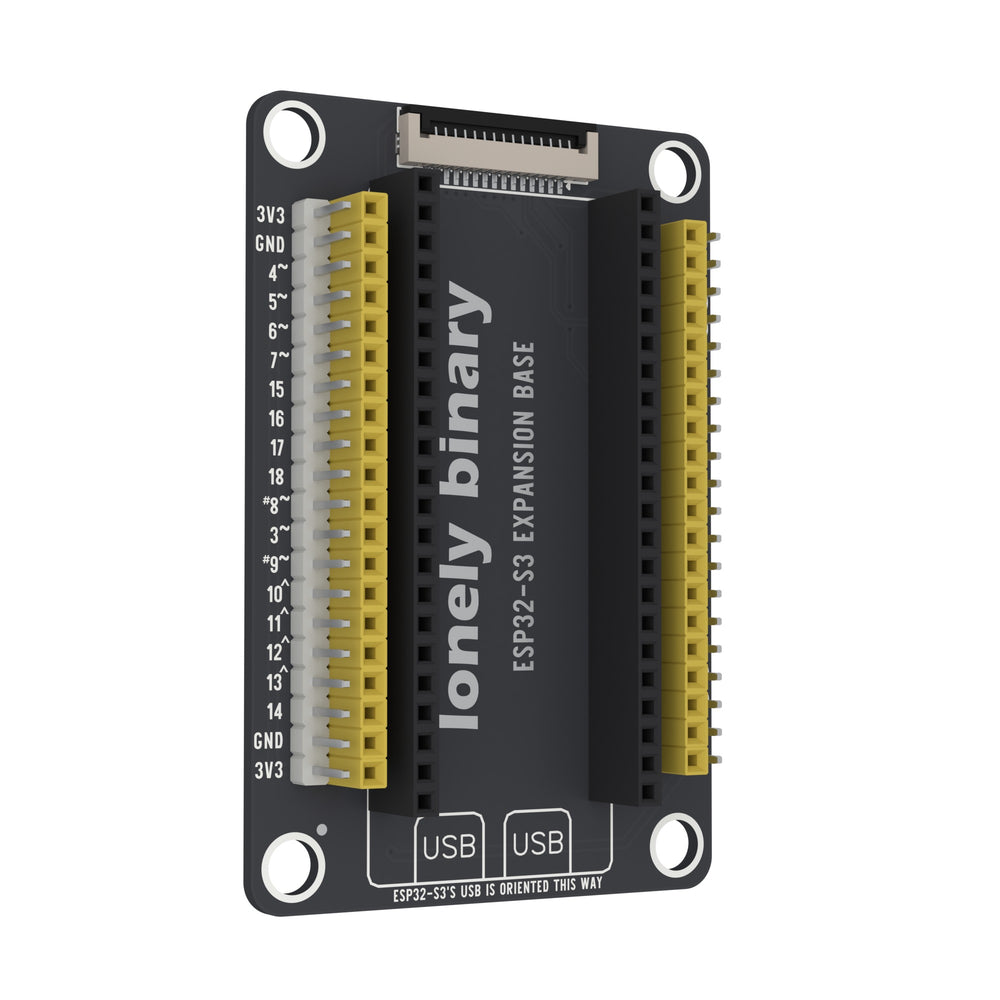

ESP32-S3 Expansion Base swung 30 degrees away on its left edge

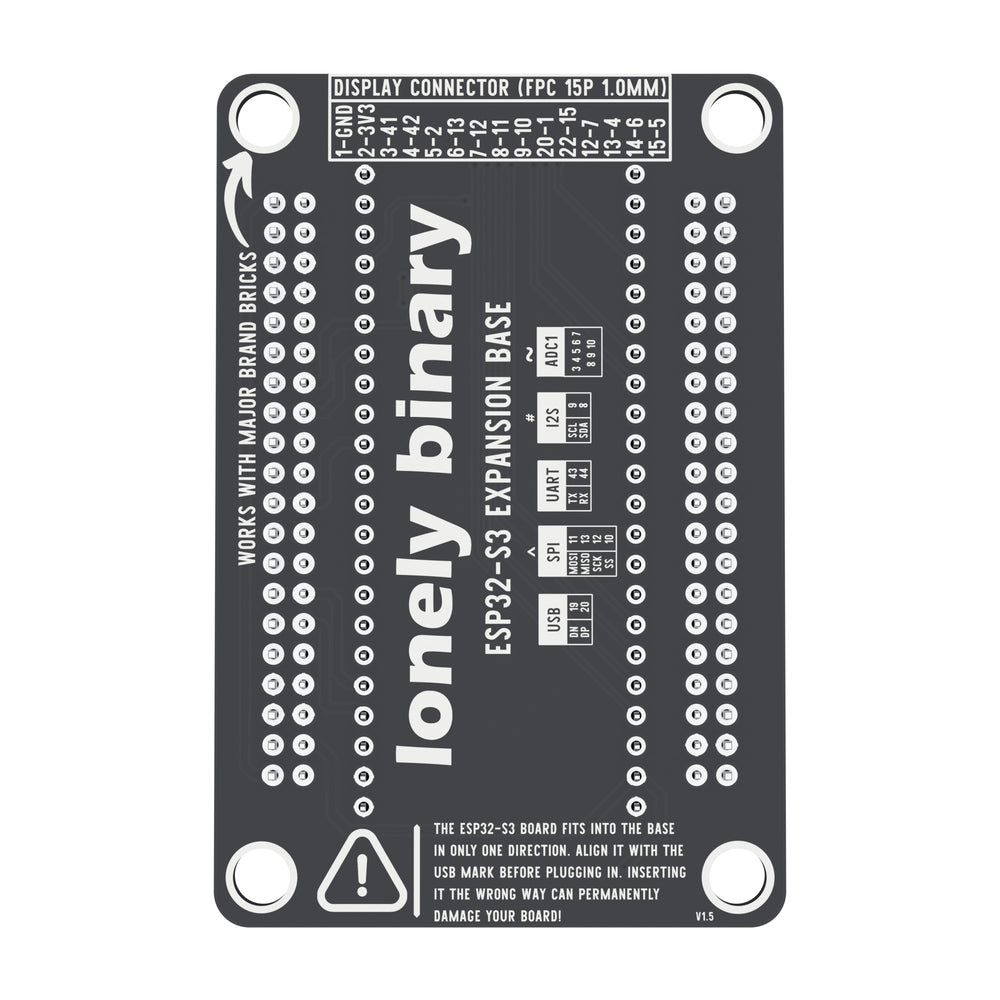

Underside of the ESP32-S3 Expansion Base with the display connector pin mapping

Description

The plainest base for the ESP32-S3: nothing on it but pins. The board plugs into the two black sockets in the middle, and every edge pin comes out again on standard 2.54 mm headers for jumper wires, breadboards and your own modules.

Highlights

Pin headers. Four 20-way 2.54 mm male strips, two a side.
Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
Four mounting holes for a case or a baseplate.

In the box

1 × ESP32-S3 Expansion Base

The ESP32-S3 board is not included.

Specifications

Pin headers: 4 × 20-way, 2.54 mm pitch, male
ESP32-S3 sockets: 2 × 22-way, 2.54 mm
Display connector: 15-way FPC
