Description
Three chainable 8x8 LED matrix modules, one each in red, green and blue, with colour-matched 3D-printed cases. For scrolling text, simple games and status displays.
Highlights

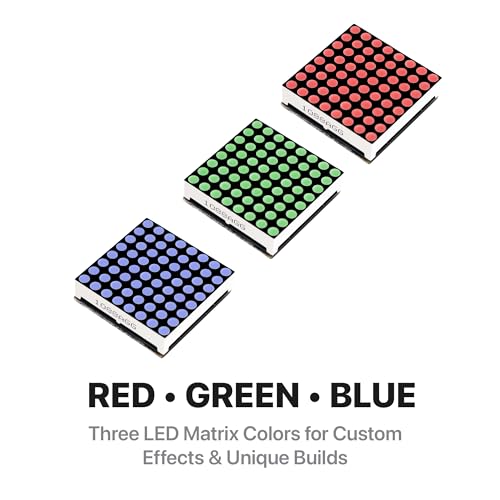

- One colour each. Red, green and blue modules, 64 LEDs apiece; each module is a single fixed colour, not RGB.
- Three signal wires. The MAX7219 driver takes DIN, CLK and CS, plus power.

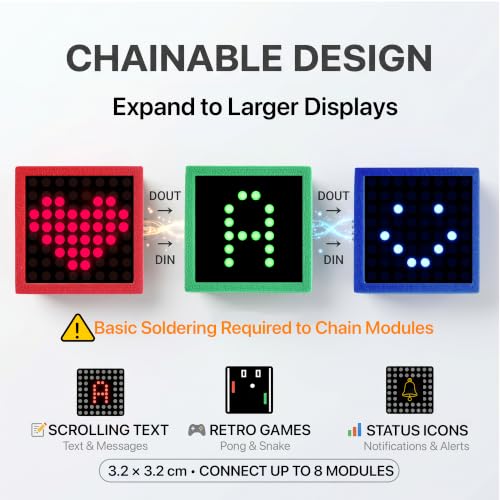

- Chainable. DOUT feeds the next module's DIN, so three make a 24x8 display. Soldering headers is required to link them.
- Adjustable brightness. 16 brightness levels set in code, plus a low-power shutdown mode.
- Cases included. Each module gets a colour-matched 3D-printed PLA case, so no bare PCB shows.

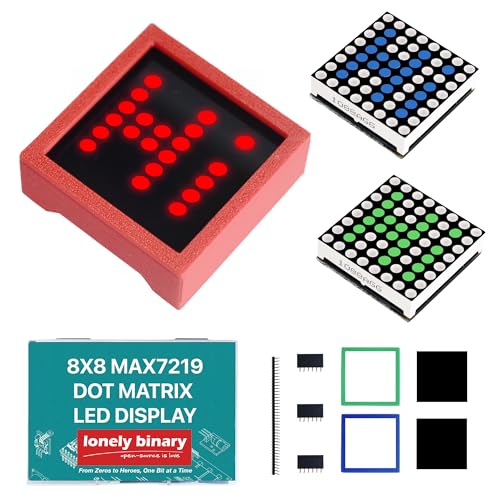

In the box
- 3 × chainable 8x8 MAX7219 LED matrix module, one each in red, green and blue
- 3 × 3D-printed case, colour-matched
- 3 × 6-way female header socket
- 1 × long male pin header strip

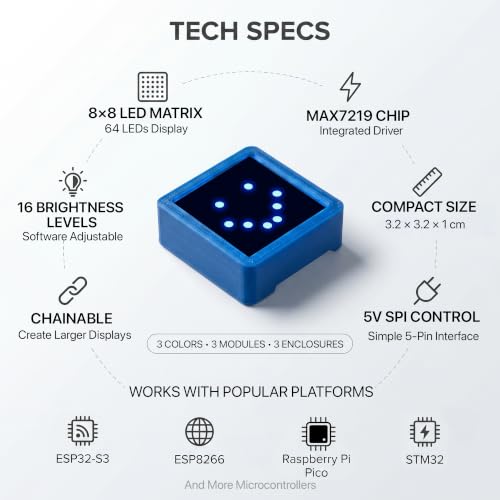

Specifications
- Display: 8x8 (64 LEDs) per module
- Driver: MAX7219
- Supply: 5V
- Interface: SPI: DIN, CLK, CS, plus DOUT for chaining
- Module size: 3.2 × 3.2 × 1 cm
Works with
Programmable from the Arduino IDE, MicroPython and CircuitPython on any board with SPI. Sample code is on the Lonely Binary GitHub.
