Description

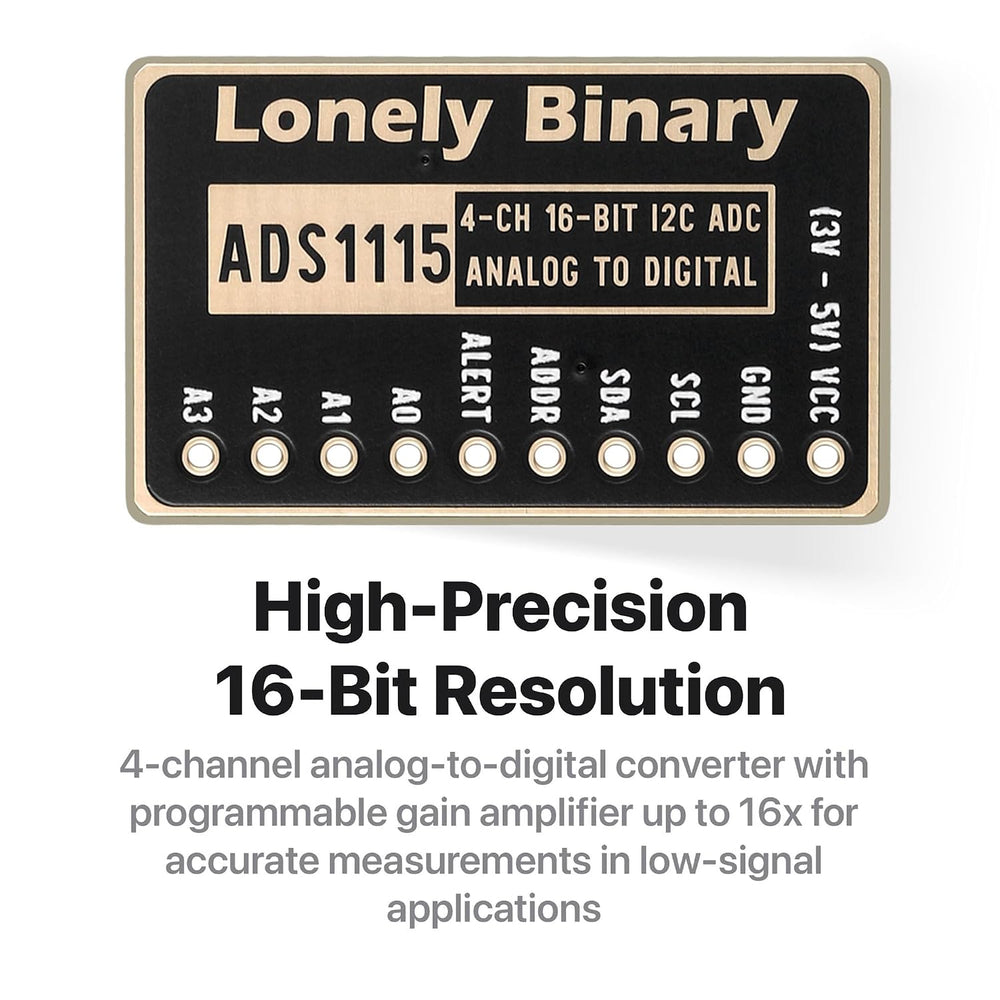

Six Gold Edition ADS1115 modules: a real 16-bit analog-to-digital converter on two I2C wires, for when your microcontroller's own analog input is not precise enough.
Highlights
- Four inputs per module. Read 4 single-ended channels or 2 differential pairs.
- Programmable gain. Six full-scale ranges from ±6.144 V down to ±0.256 V, as fine as 7.8 µV per count.
- Two per I2C bus. 0x48 as shipped, 0x49 with the ADDR pad bridged, so two modules share one bus for eight channels.
- 3.3 V or 5 V. Runs from 2.0 V to 5.5 V, so it talks to 3.3 V and 5 V boards without a level shifter.

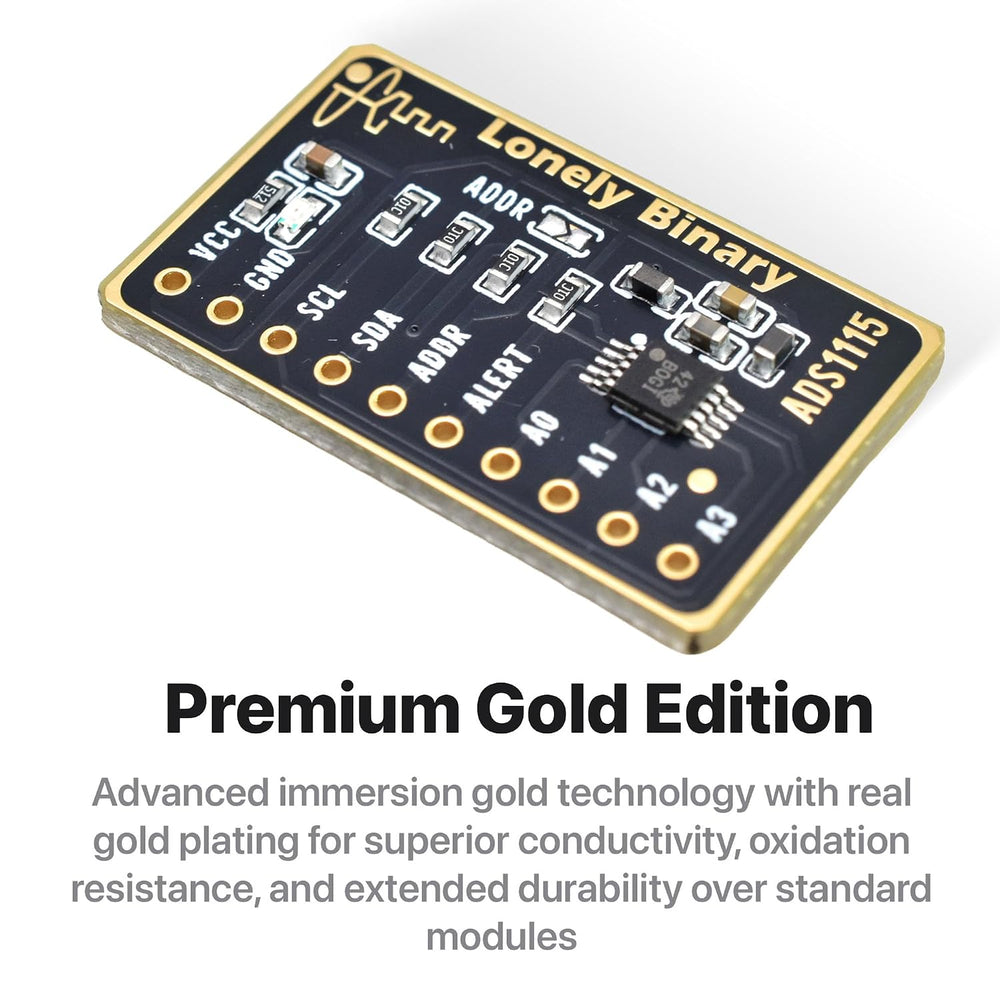

- Ready to plug in. Headers fitted, ENIG gold finish, lead-free.
In the box

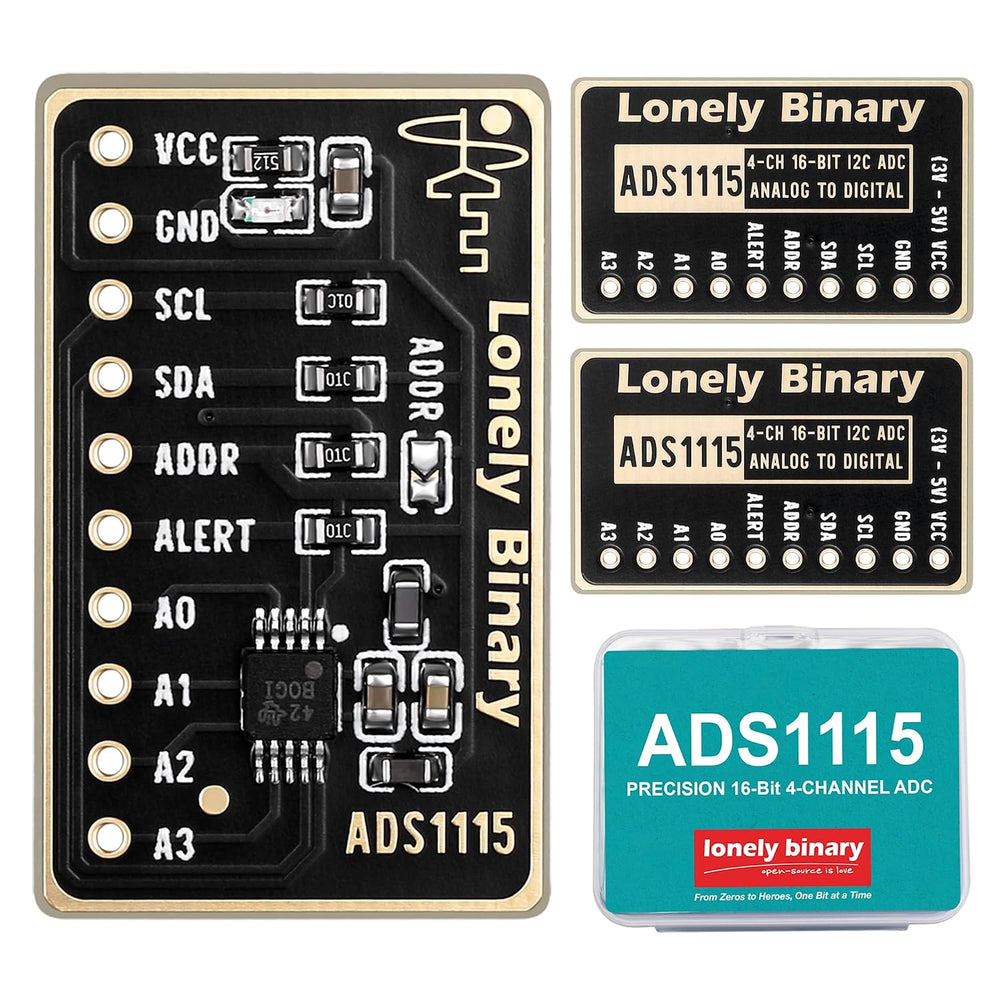

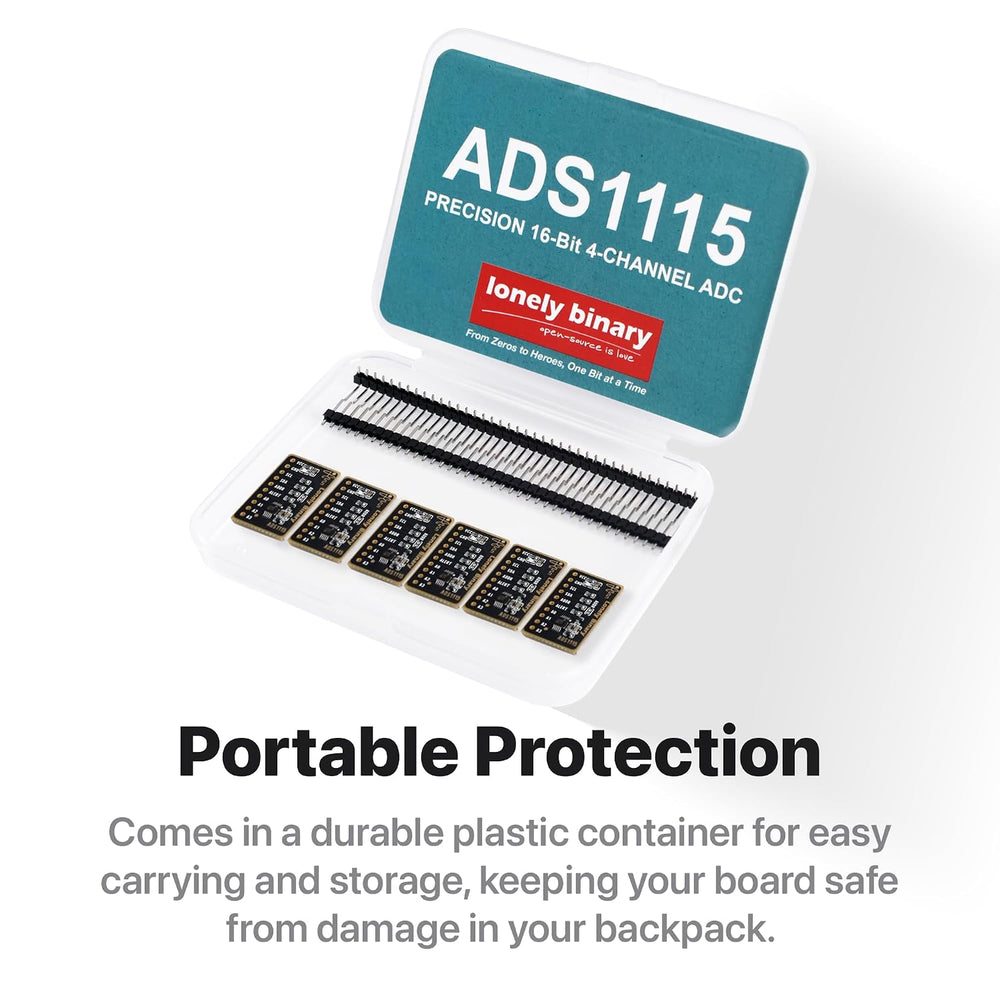

- 6 × ADS1115 module with headers fitted
Specifications
- Converter: Texas Instruments ADS1115, 16-bit delta-sigma, internal reference
- Inputs: 4 single-ended or 2 differential
- Input ranges: ±6.144 V to ±0.256 V (inputs must stay between GND and supply)
- Supply: 2.0 V to 5.5 V
- I2C addresses: 0x48, 0x49
- Board size: 17.2 × 27.9 mm
Works with

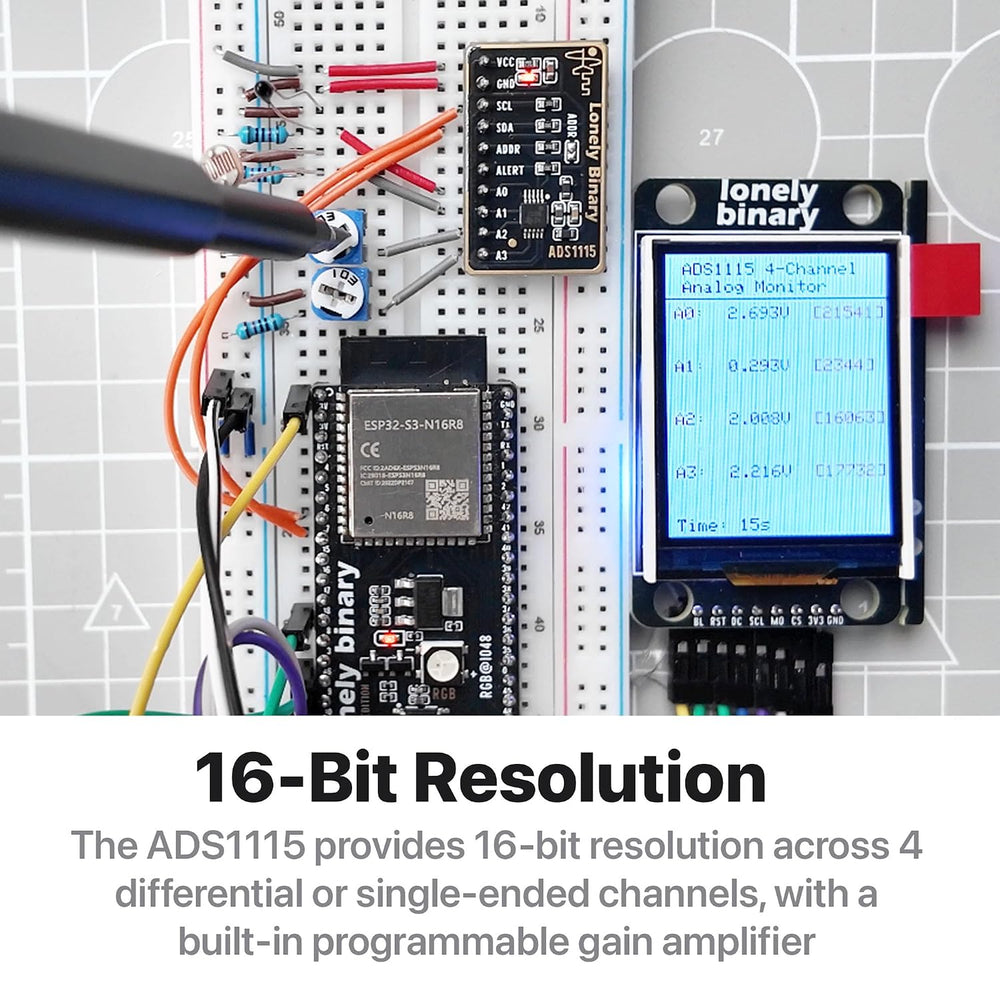

Any I2C microcontroller, including UNO, Nano, ESP32 and ESP32-S3. Libraries are available for C++, MicroPython and CircuitPython.
