Description

Six colour SPI TFT displays from 0.96" to 3.5" with the same connector, so you can try every size on your project.

Highlights

• Same connector on every panel. A pre-soldered 15-pin FPC plugs into Lonely Binary boards such as the PinPulse shield (sold separately).
• Or use jumper wires. Solder on the included headers for breadboard or Dupont wiring.
• 3.3 V logic only. A 5 V board such as an UNO needs a logic level converter on the signal lines, or it will damage the panel.

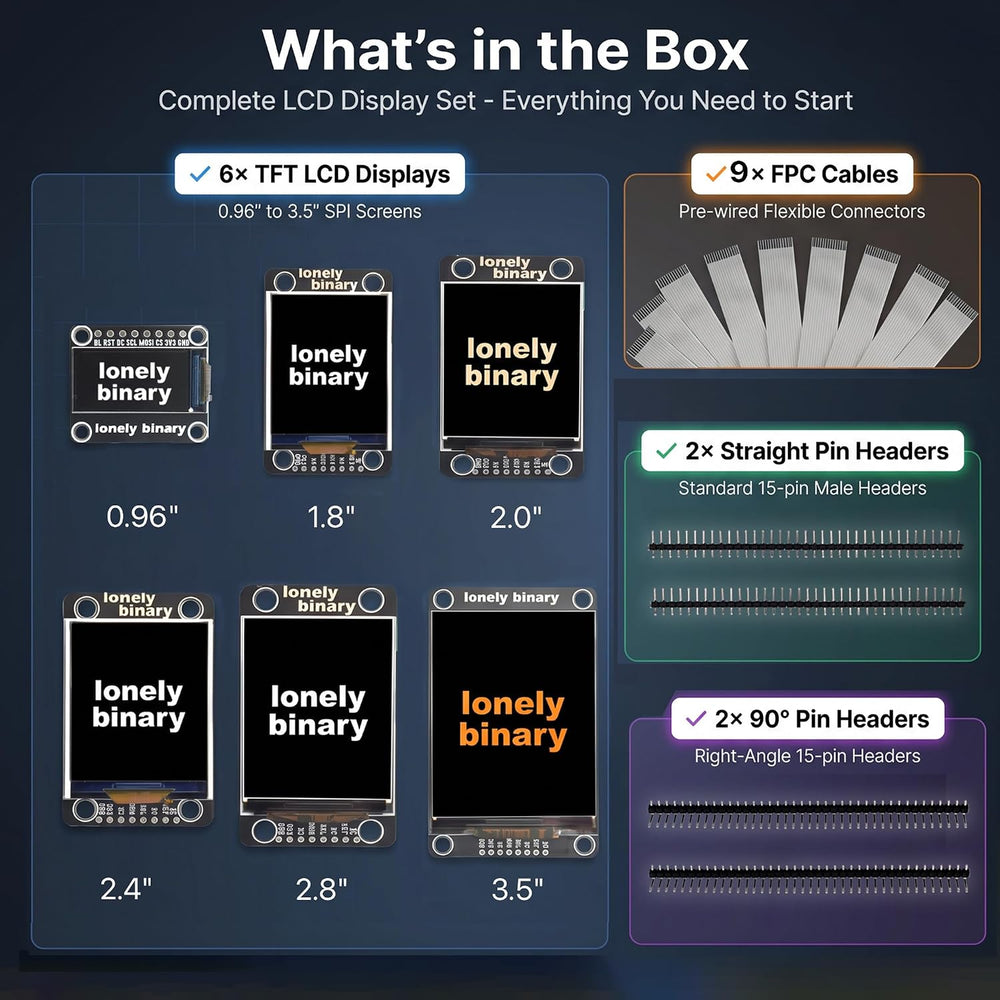

In the box

• 6 × SPI TFT display: 0.96", 1.8", 2.0", 2.4", 2.8" and 3.5"
• 9 × 15-way FPC ribbon cable, in three lengths
• 2 × straight breakaway male header strip
• 2 × right-angle breakaway male header strip
• 1 × hinged storage case

Specifications

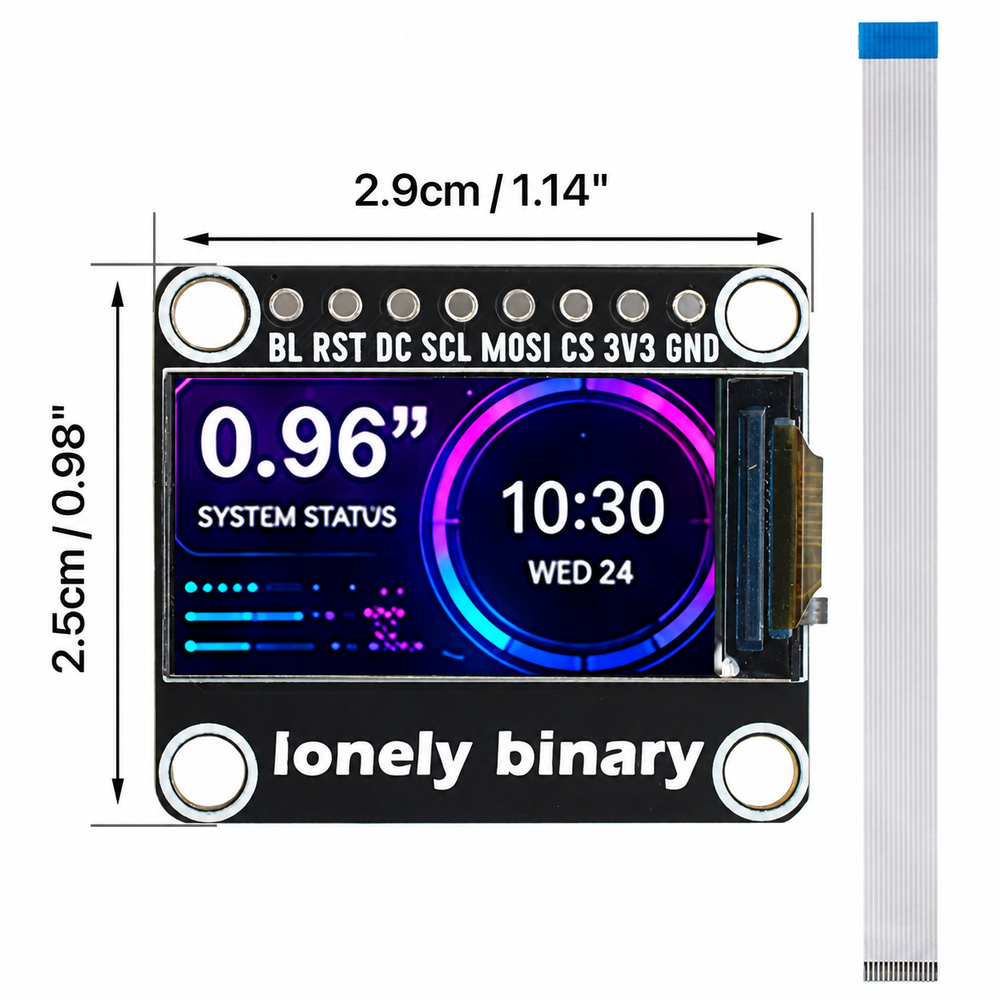

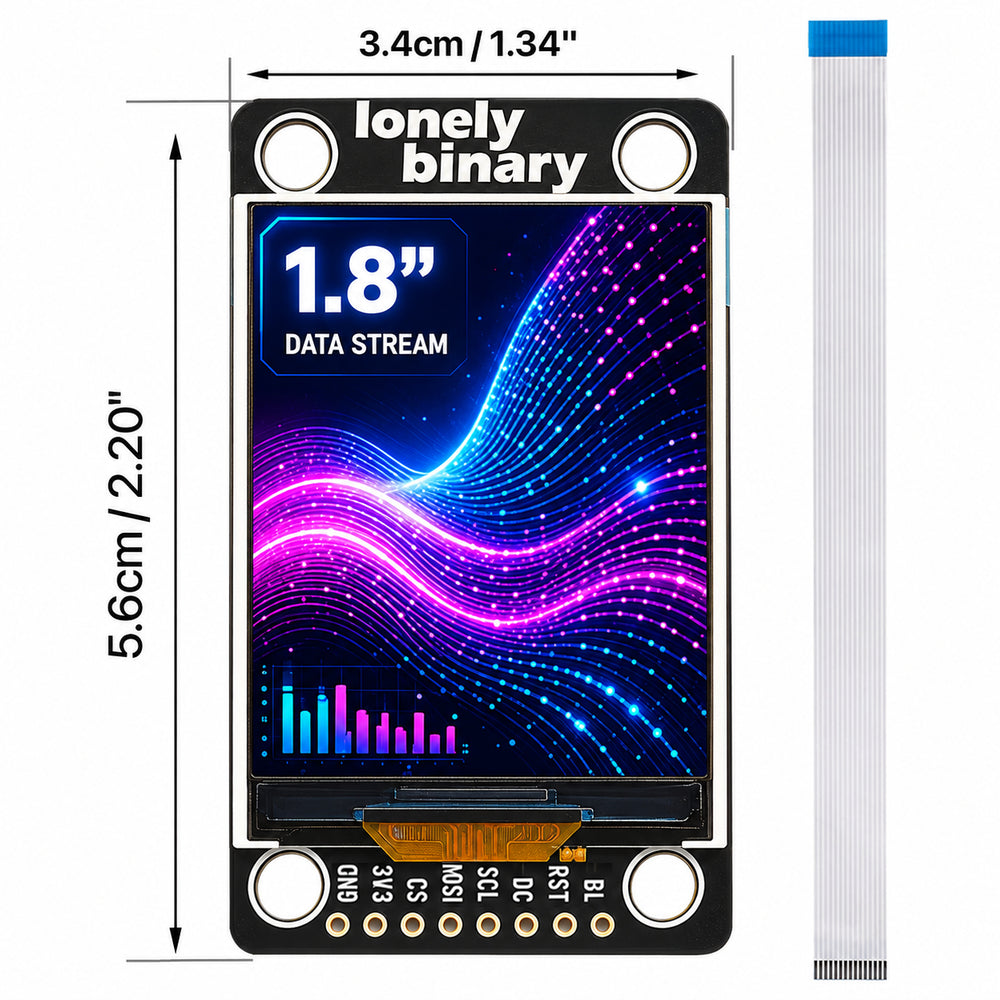

• Controllers: ST7735 (0.96", 1.8"), ST7789 (2.0", 2.4", 2.8"), ST7796 (3.5")

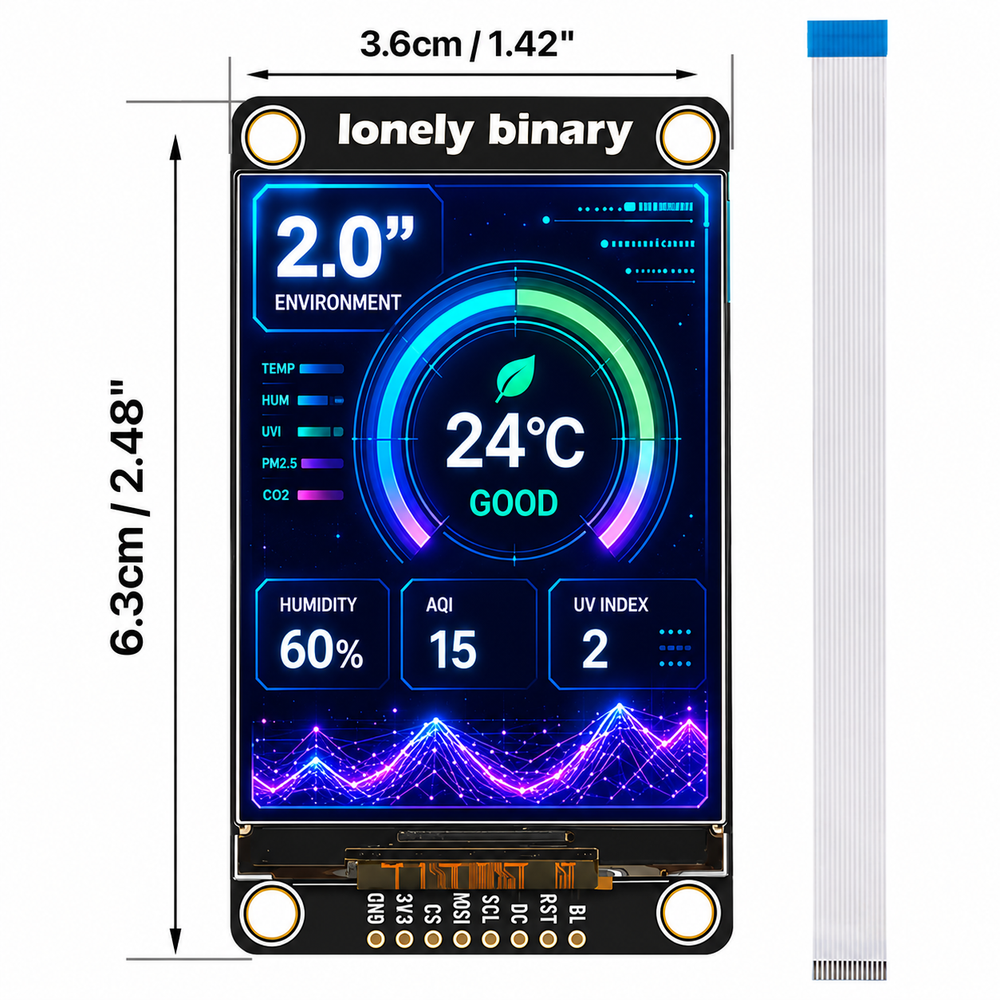

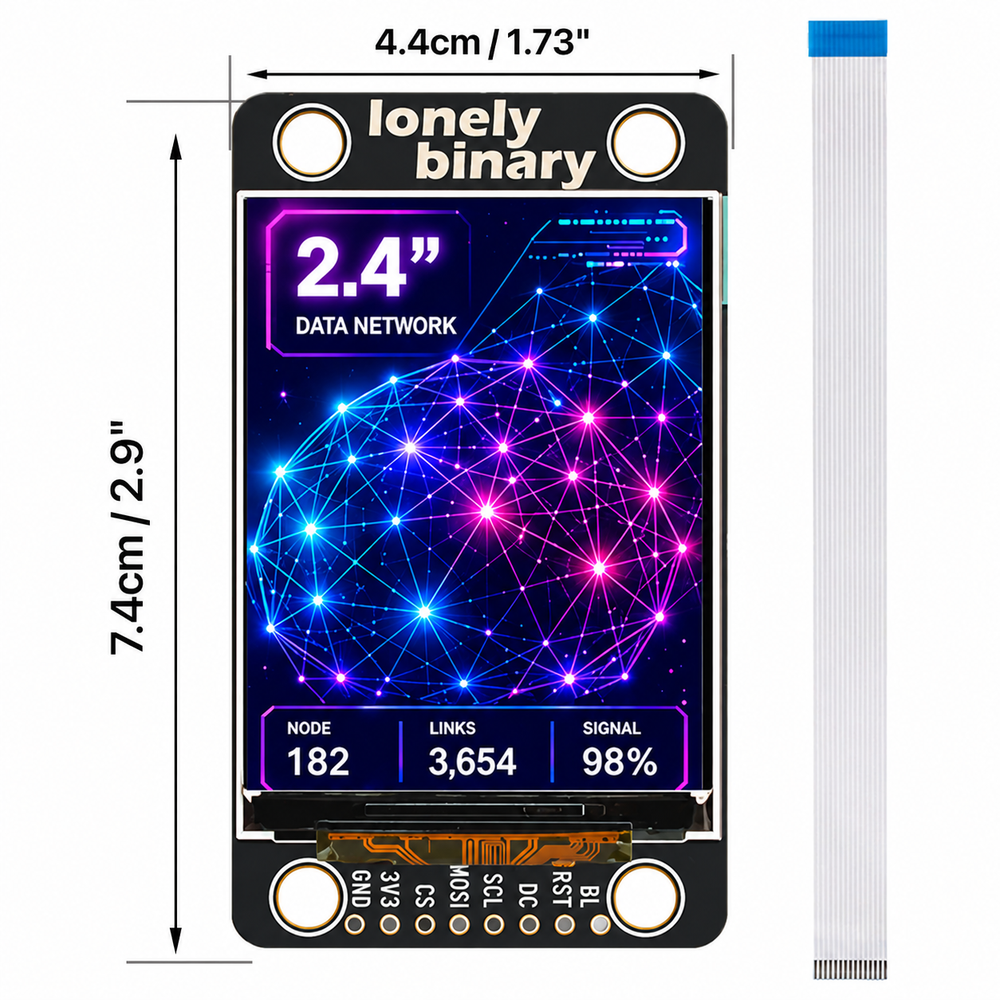

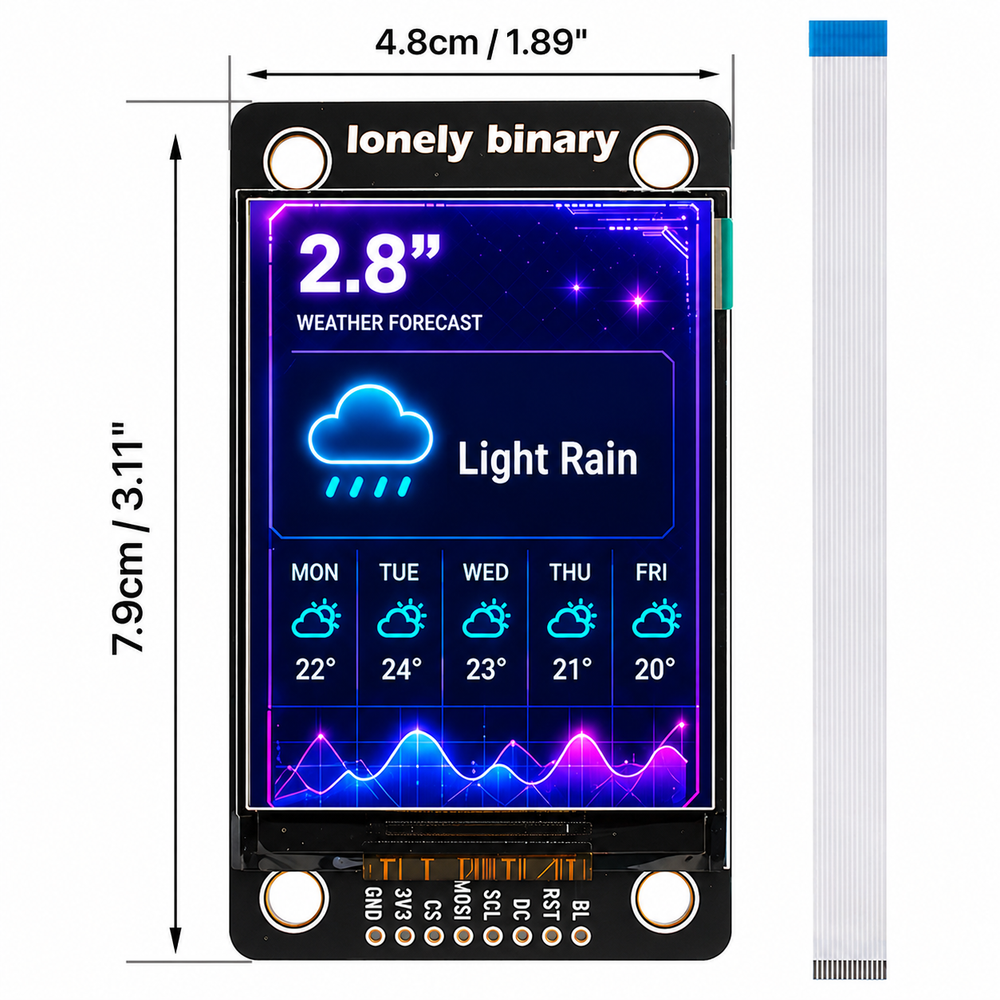

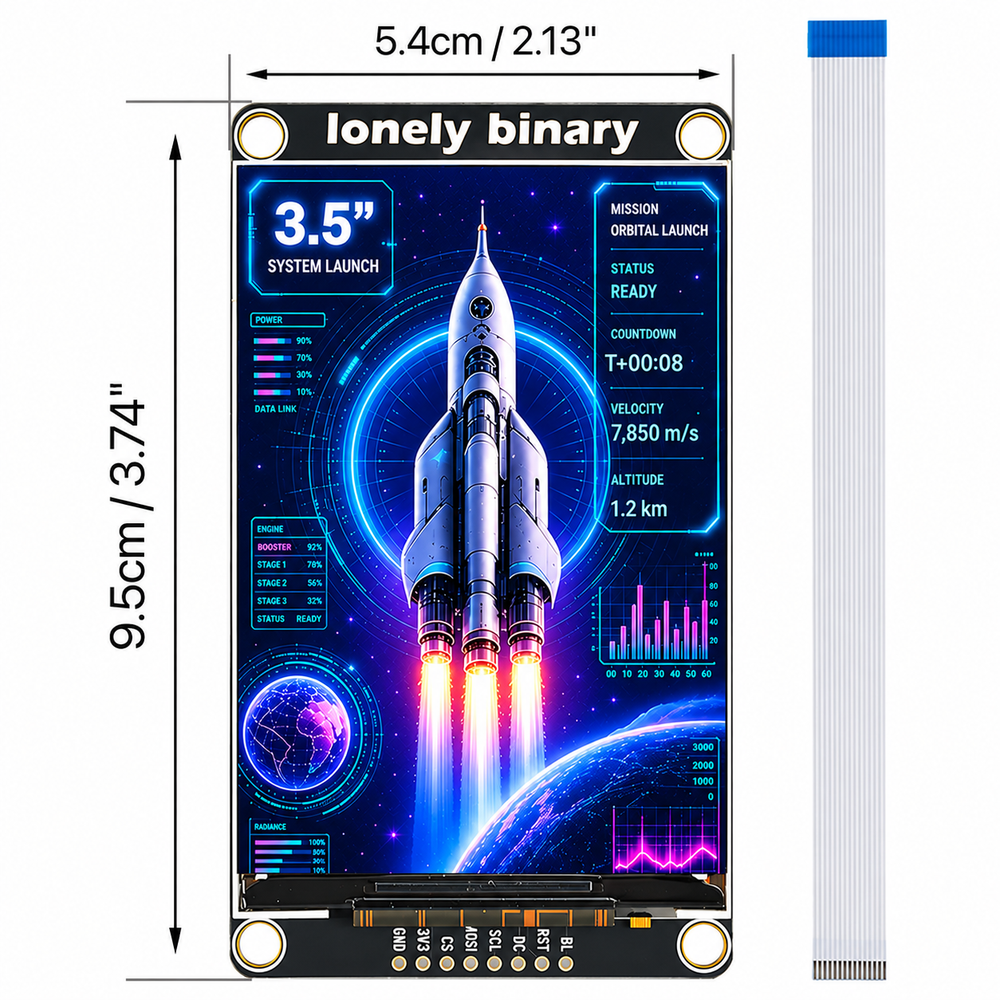

• Resolution: 240 × 320 on the 2.0", 2.4" and 2.8"; 320 × 480 on the 3.5"
• Logic level: 3.3 V only

Works with

ESP32, ESP32-S3, Raspberry Pi Pico and other 3.3 V boards, with the Lonely Binary Display library, TFT_eSPI or Adafruit GFX in the Arduino IDE, or MicroPython st7789/st7735 drivers.
