Description

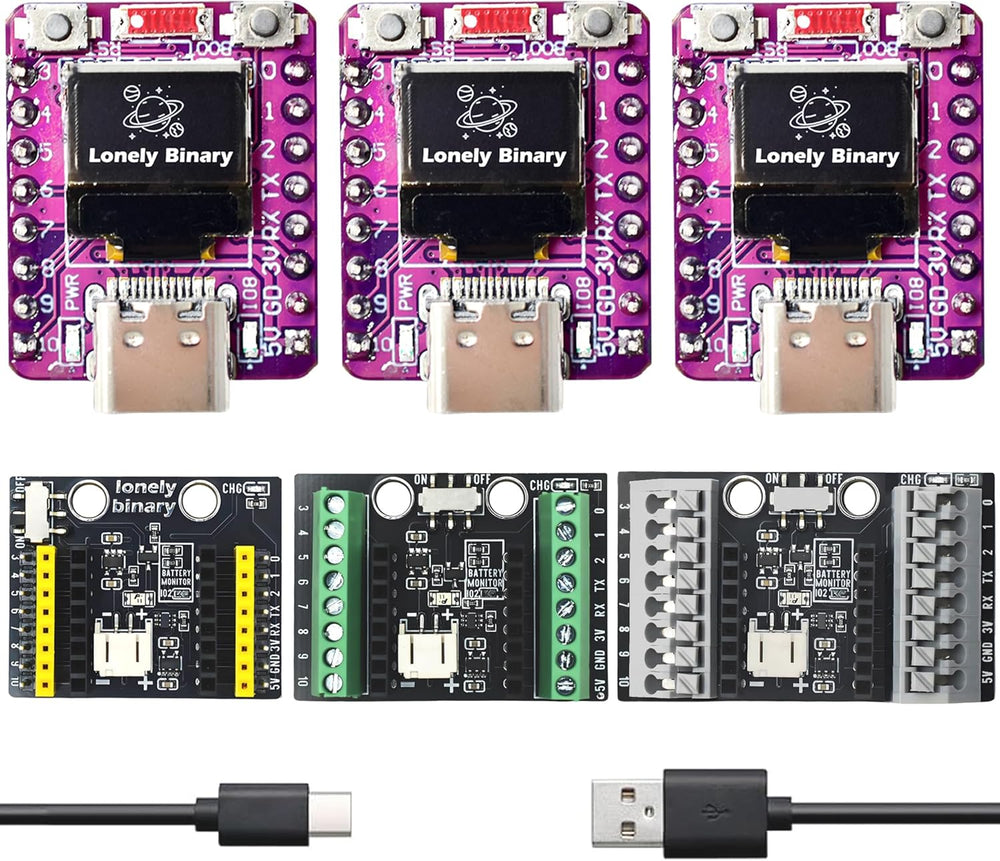

Tiny ESP32-C3 boards with a built-in OLED screen, plus three expansion shields that add a LiPo battery port. For battery-powered sensors and small connected devices.
Highlights

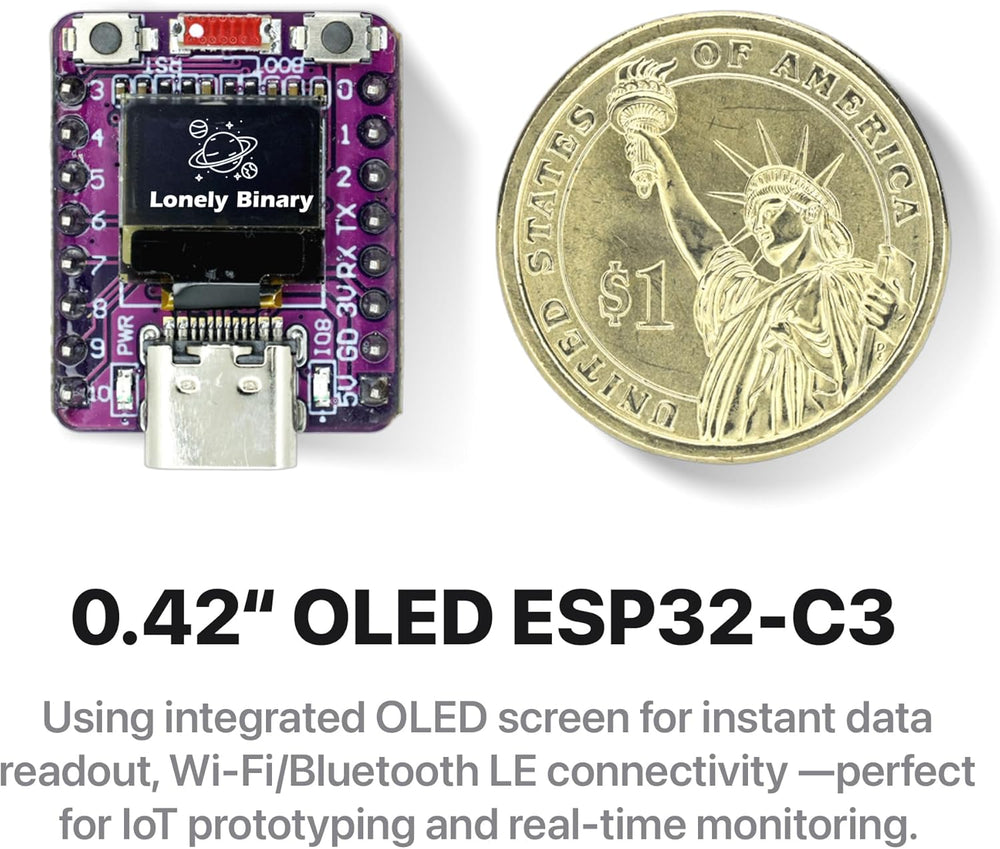

- Screen on board. A 0.42-inch 72 × 40 OLED is already wired, handy for readings and debugging.
- Wi-Fi and Bluetooth LE. ESP32-C3 RISC-V chip at up to 160MHz with 4MB flash.
- Battery backup. With USB-C connected the shield runs the board and charges the battery; unplug it and the battery takes over without a reboot.
- Three shield styles. 2.54mm expansion, screw terminal and non-screw terminal, each with a LiPo port and a regulated 3.3V supply.
- Battery monitoring. Short the monitor pads to read the battery voltage.

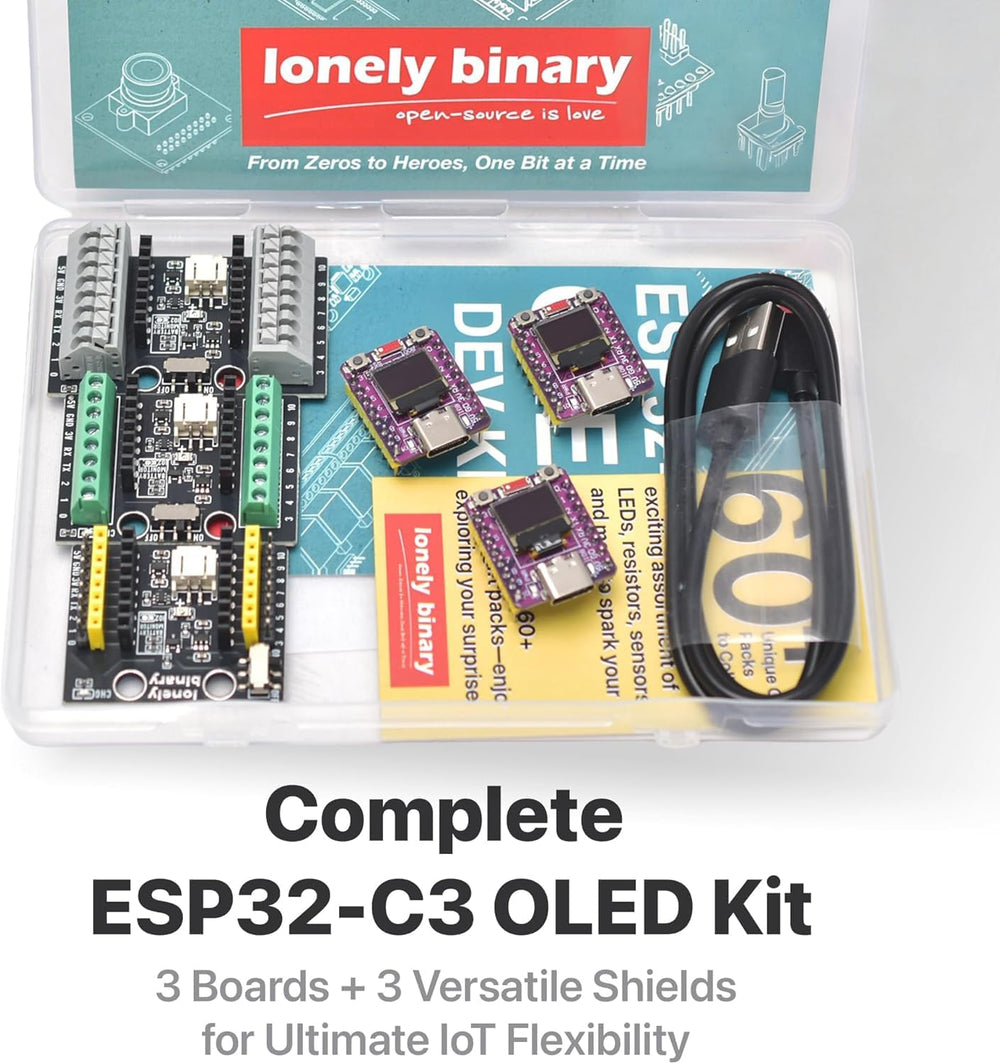

In the box
- 3 × ESP32-C3 OLED development board

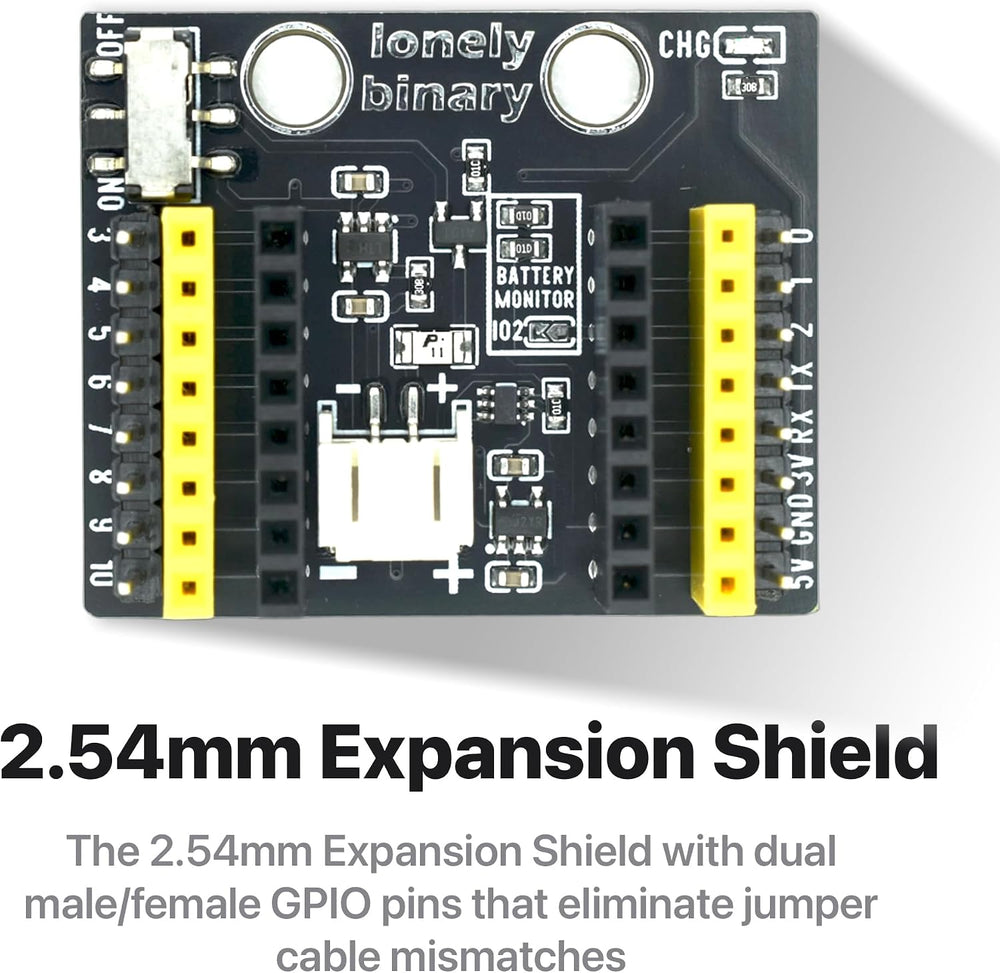

- 1 × 2.54mm expansion shield with LiPo battery port

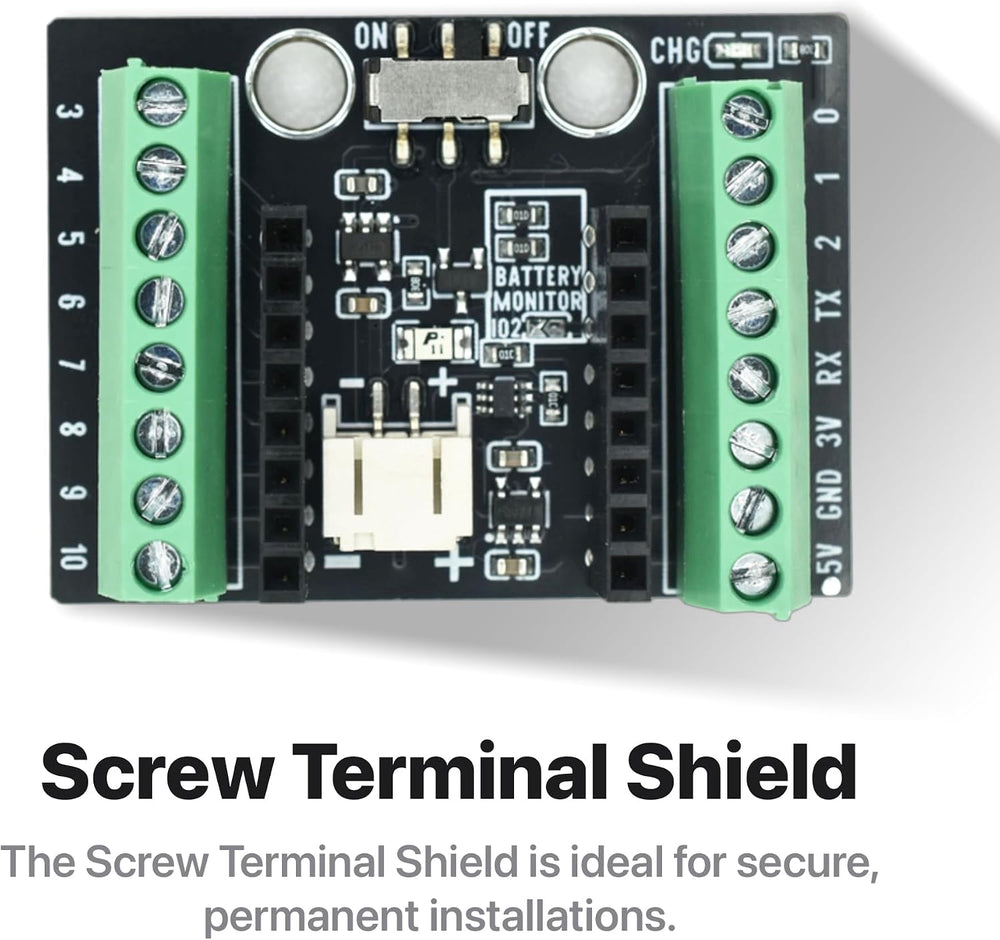

- 1 × screw terminal shield with LiPo battery port

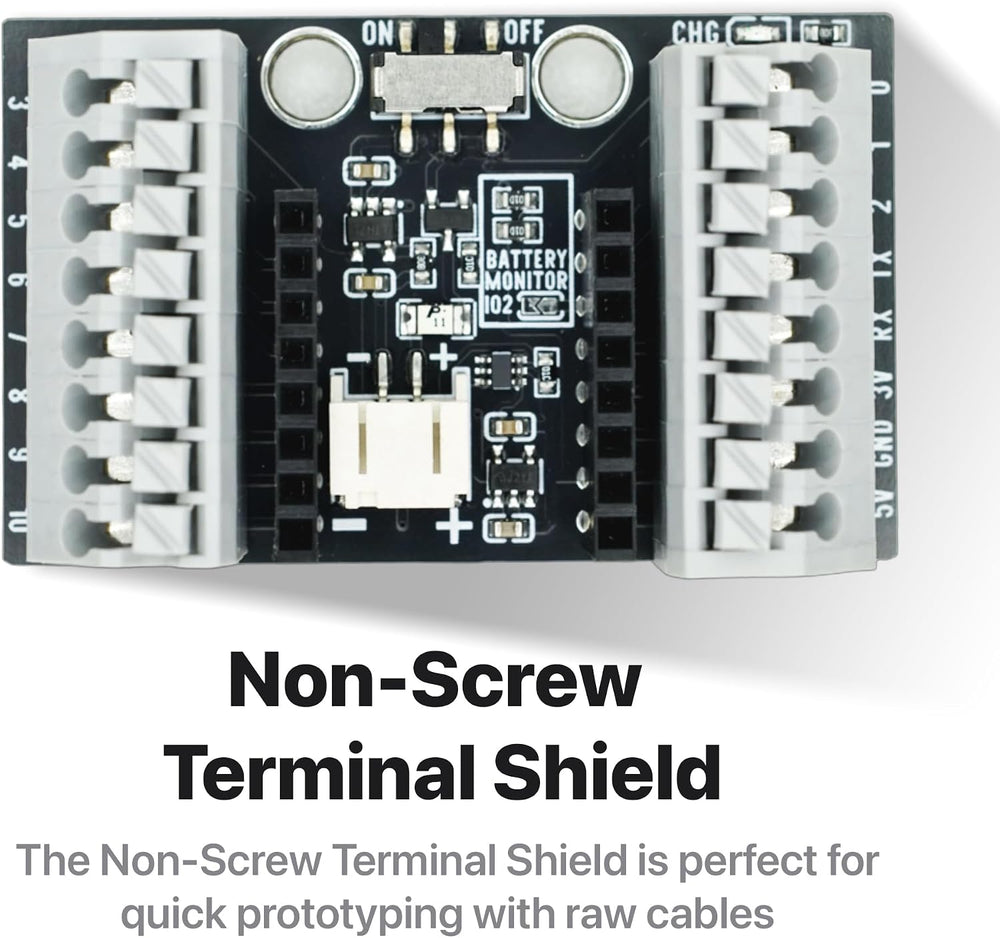

- 1 × non-screw terminal shield with LiPo battery port
Specifications

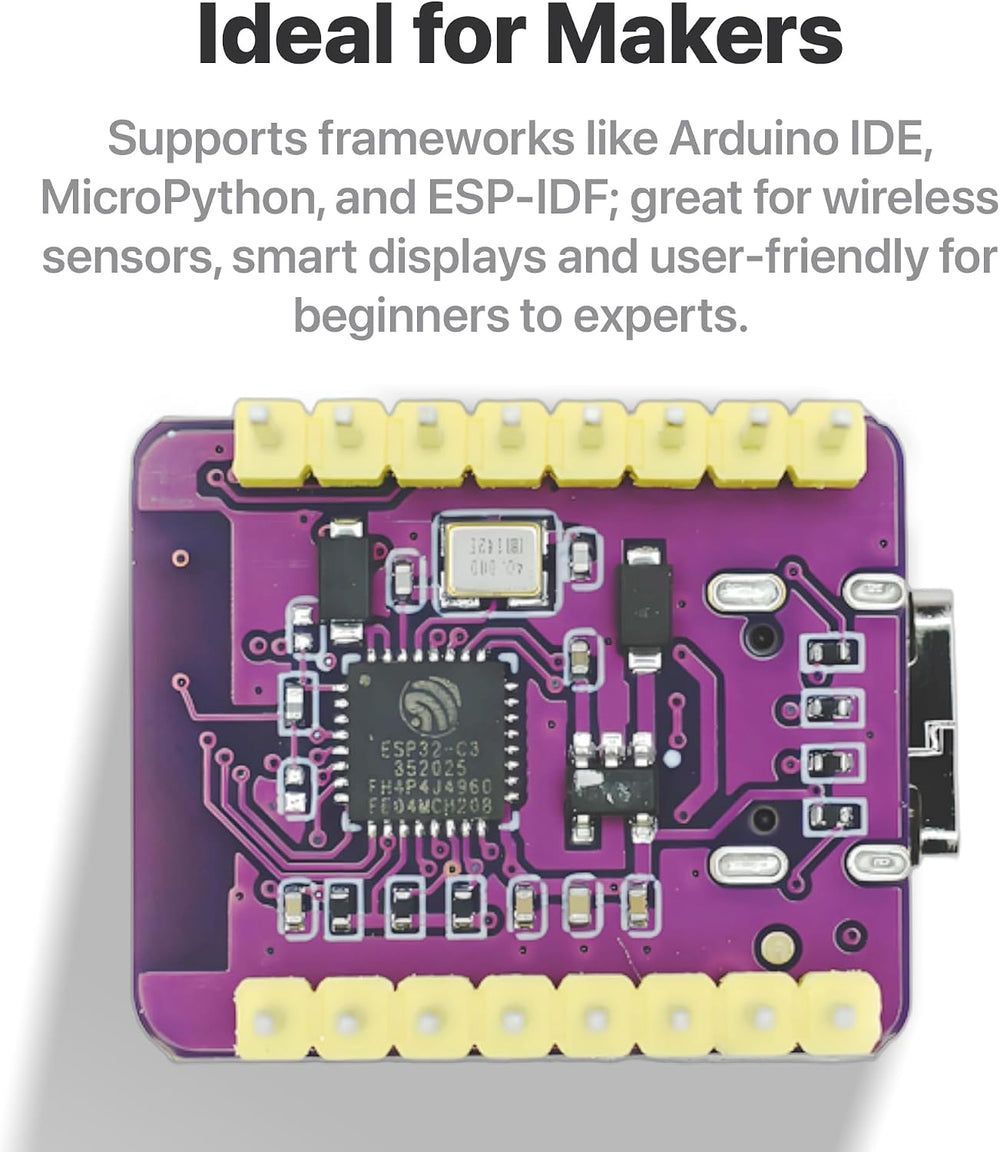

- Chip: ESP32-C3FH4, single-core RISC-V, up to 160MHz
- Memory: 4MB flash, 400kB SRAM, no PSRAM
- Display: 0.42 in, 72 × 40, SH1106 at 0x3C
- Board size: 25 × 20.5mm
Works with
Arduino IDE, ESP-IDF and MicroPython. Contents shown are for the 3-pack set; LiPo batteries and jumper wires are sold separately.
Questions
ESP32-C3 OLED Dev Board + LiPo Shield, 3-Pack
- Ships worldwide
- 30-day returns
- 12-month warranty
What's in the box
parts, each with its own handbook
Tap any part for its wiring, example code for Arduino and MicroPython, and a 3D model you can turn over.
Stuck? Ask the people who made it
Email office@lonelybinary.com with your setup and what it is doing. Our product team answers within 24 hours.
