Nano V3.0 USB-C + PinPulse LED Shield, 3-Pack
Nano V3.0 USB-C + PinPulse LED Shield, 3-Pack is backordered and will ship as soon as it is back in stock.
Warranty and returns
Warranty and returns
12-month warranty on everything we sell. If a part is faulty, we'll replace or refund it and cover the return postage. Damage from soldering, wiring mistakes or modification isn't covered.
Changed your mind? Return it unused within 30 days for a full refund, with no restocking fee.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Full returns policy
Shipping
Shipping
Free standard shipping within Australia on orders over A$55. Under A$55, standard shipping is A$6.95.
New Zealand A$8.99. Rest of the world A$14.95, flat rate.
Orders ship from Macquarie Park, NSW within one business day of payment when the item is in stock. Shipping policy
Nano V3.0 USB-C + PinPulse LED Shield, 3-Pack is backordered and will ship as soon as it is back in stock.
Stuck? Ask the people who made it
Email office@lonelybinary.com with your setup and what it is doing. Our product team answers within 24 hours.
Description
Description
Three ATmega328P Nano V3.0 boards with USB-C, plus a PinPulse shield that puts a status LED on every I/O pin. For learning Arduino and debugging circuits at a glance.
Highlights

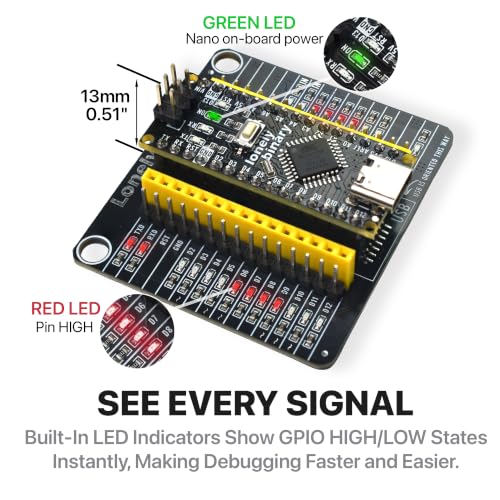

- See every pin. The PinPulse shield shows HIGH or LOW on TX/RX, D2 to D13 and A0 to A7.

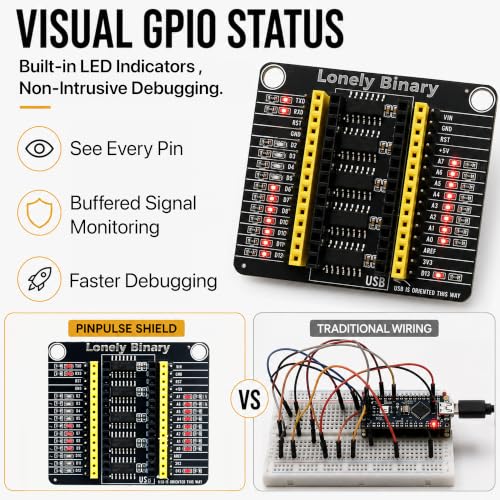

- Buffered LEDs. SN74HC04D inverters drive the LEDs, keeping the load off your I2C, SPI and UART signals.

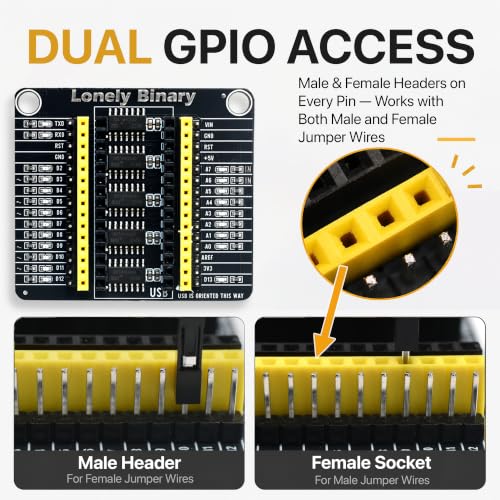

- Male and female on every pin. Dual 2.54 mm headers take any jumper wire type.

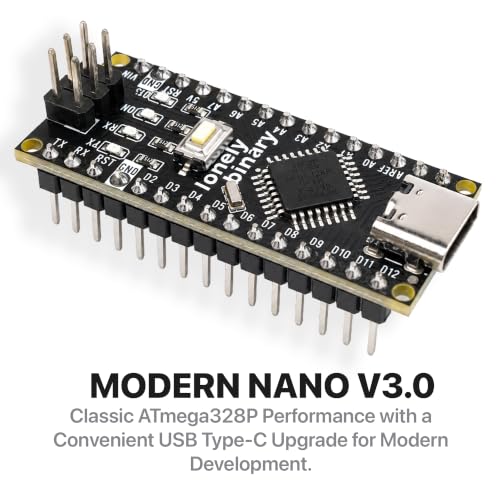

- USB-C. A reversible connector on every Nano.
- Arduino IDE compatible. Existing Nano sketches, libraries and shields work as they are.

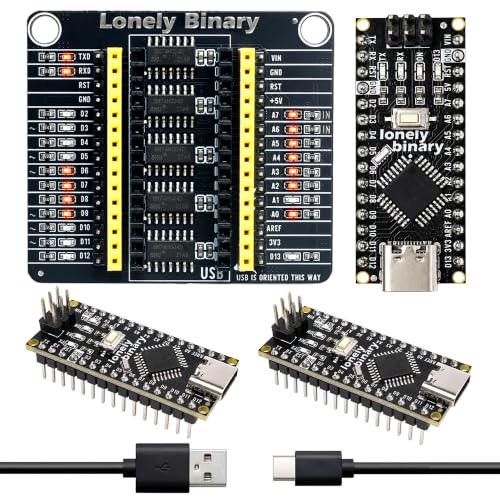

In the box
- 3 × Nano V3.0 board, USB-C
- 1 × PinPulse shield
- 1 × USB-C cable
- 1 × printed quick-start card (CH340 driver and Arduino IDE setup)
Specifications
- Microcontroller: ATmega328P at 16 MHz
- Flash: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
- Digital I/O: 14, 6 with PWM
- Analog inputs: 8
- USB serial: CH340
Works with
Arduino IDE. Sensor and display modules shown in photos are not included.
