0.56" 7-Segment LED + 74HC595 Driver, 24-Pack
0.56" 7-Segment LED + 74HC595 Driver, 24-Pack is backordered and will ship as soon as it is back in stock.
Warranty and returns
Warranty and returns
12-month warranty on everything we sell. If a part is faulty, we'll replace or refund it and cover the return postage. Damage from soldering, wiring mistakes or modification isn't covered.
Changed your mind? Return it unused within 30 days for a full refund, with no restocking fee.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Full returns policy
Shipping
Shipping
Free standard shipping within Australia on orders over A$55. Under A$55, standard shipping is A$6.95.
New Zealand A$8.99. Rest of the world A$14.95, flat rate.
Orders ship from Macquarie Park, NSW within one business day of payment when the item is in stock. Shipping policy
0.56" 7-Segment LED + 74HC595 Driver, 24-Pack is backordered and will ship as soon as it is back in stock.
Stuck? Ask the people who made it
Email office@lonelybinary.com with your setup and what it is doing. Our product team answers within 24 hours.
Description
Description
A seven-segment display kit: 24 single digits and 12 shift-register driver boards with the resistors already fitted. For clocks, counters, timers and meters.
Highlights
- 24 digits, two kinds. 12 common-cathode and 12 common-anode 0.56-inch red digits.
- Resistors fitted. Each 74HC595 driver board carries its eight series resistors, so no loose resistors to wire.
- Three wires for any length. Daisy-chain the driver boards and drive every digit from Data, Clock and Latch. Works with the Arduino shiftOut() function.
- Snap-on enclosures. Each digit gets a printed frame and smoked film for a finished look.
- Know the limit. The 74HC595 is rated to 70mA across the whole chip, which matters when every segment is lit.

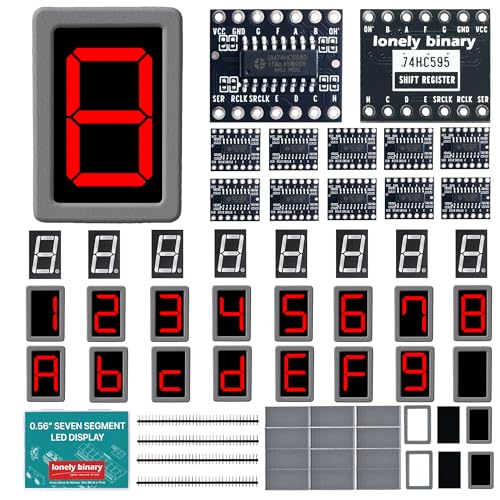

In the box

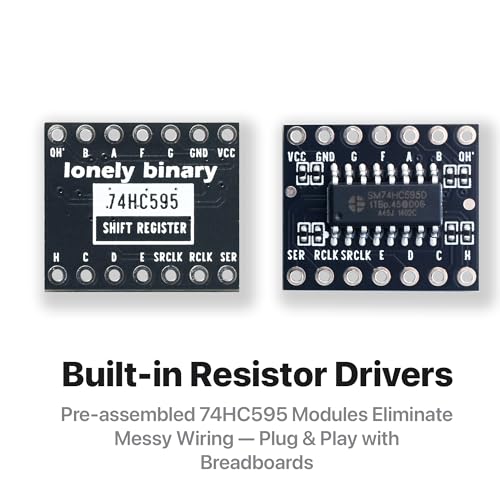

- 12 × 74HC595 driver board, eight series resistors fitted
- 12 × common-cathode digit (5161AS)

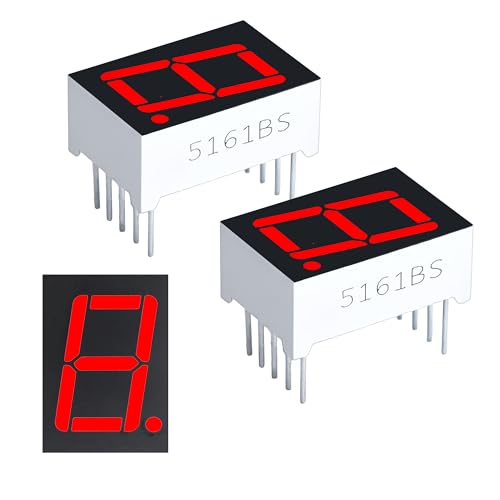

- 12 × common-anode digit (5161BS)
- 24 × snap-on enclosure: printed frame and smoked film
- Male pin header strips for the driver boards
Specifications
- Digit size: 0.56 inch, red
- Driver: 74HC595 shift register
- Interface: Data, Clock, Latch
- Chip current: 70mA maximum
Works with
Arduino IDE boards, ESP32, ESP32-S3, Raspberry Pi Pico and STM32.
