Description
A shield for the Nano that puts a status LED on every I/O pin. See which pins are HIGH or LOW at a glance, for learning Arduino and debugging circuits.
Highlights

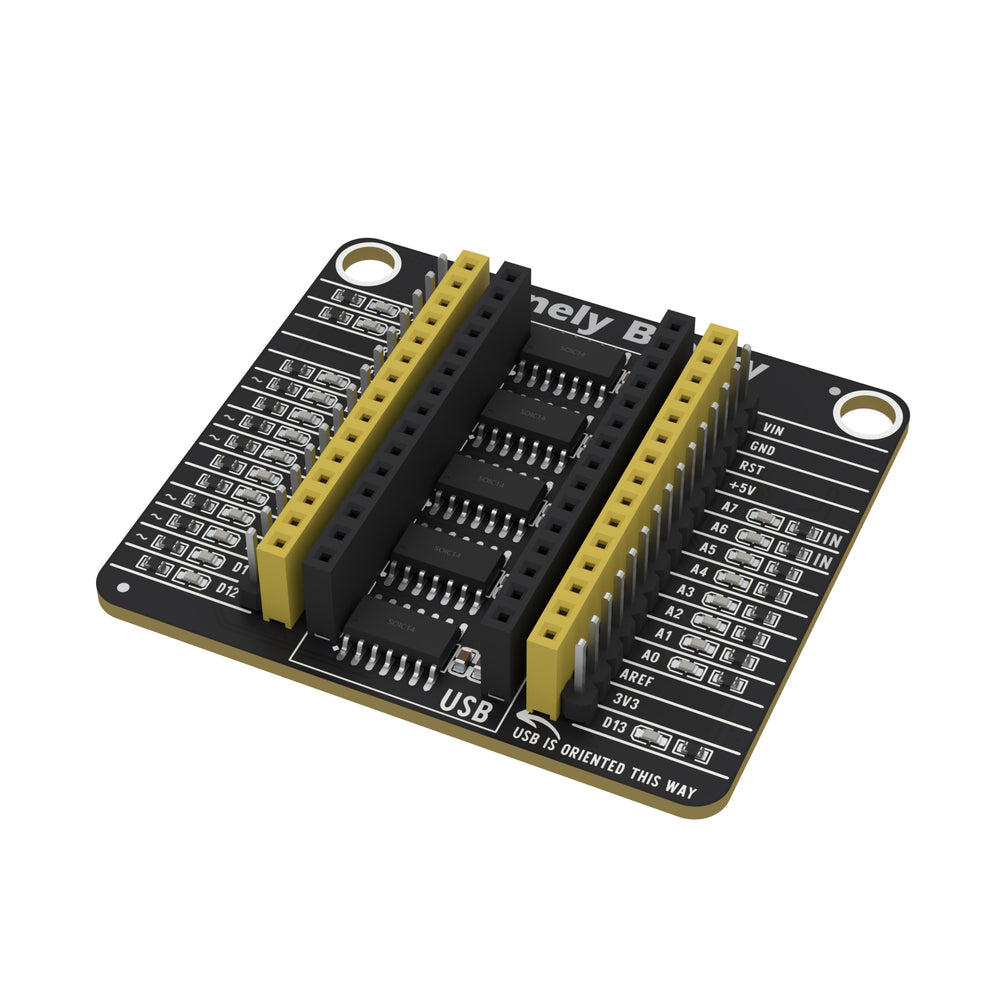

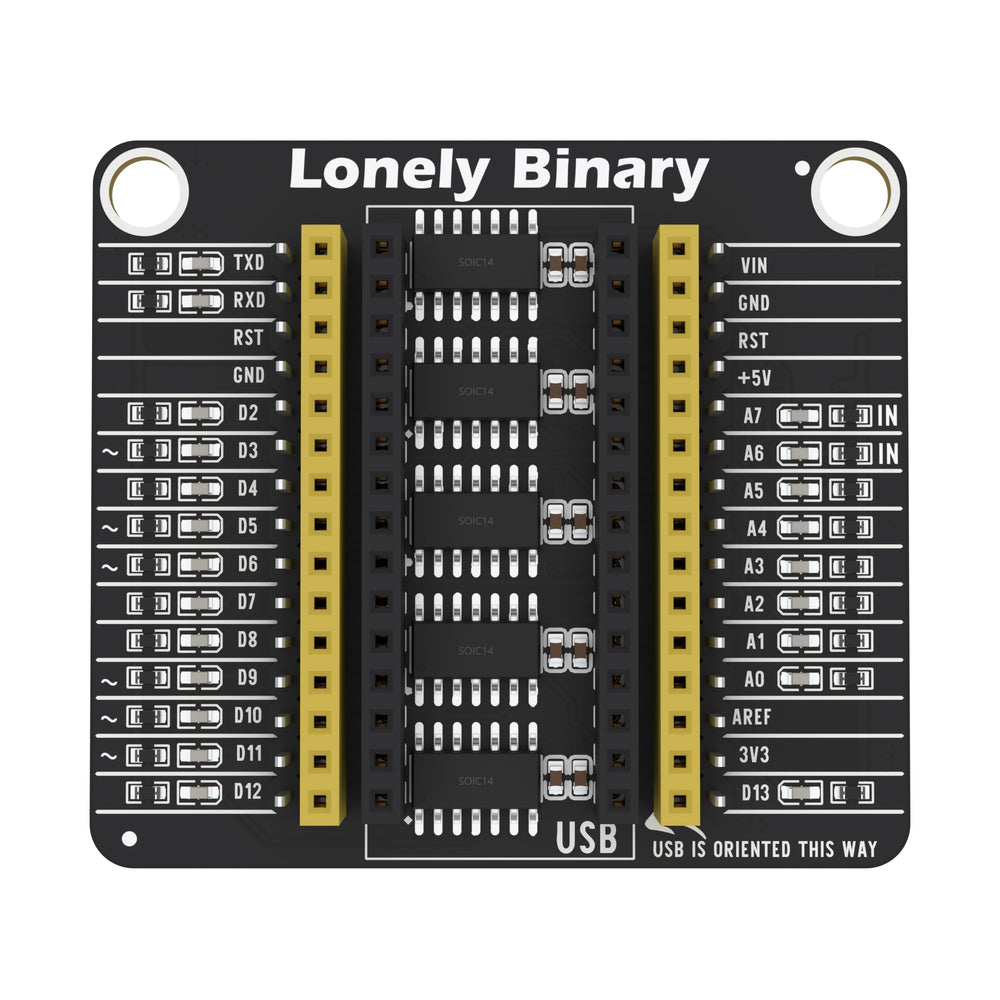

- See every pin. 22 LEDs show the state of TX/RX, D2 to D13 and A0 to A7.
- Buffered LEDs. Five SN74HC04 inverters drive the LEDs, keeping the load off your I2C, SPI and UART signals.

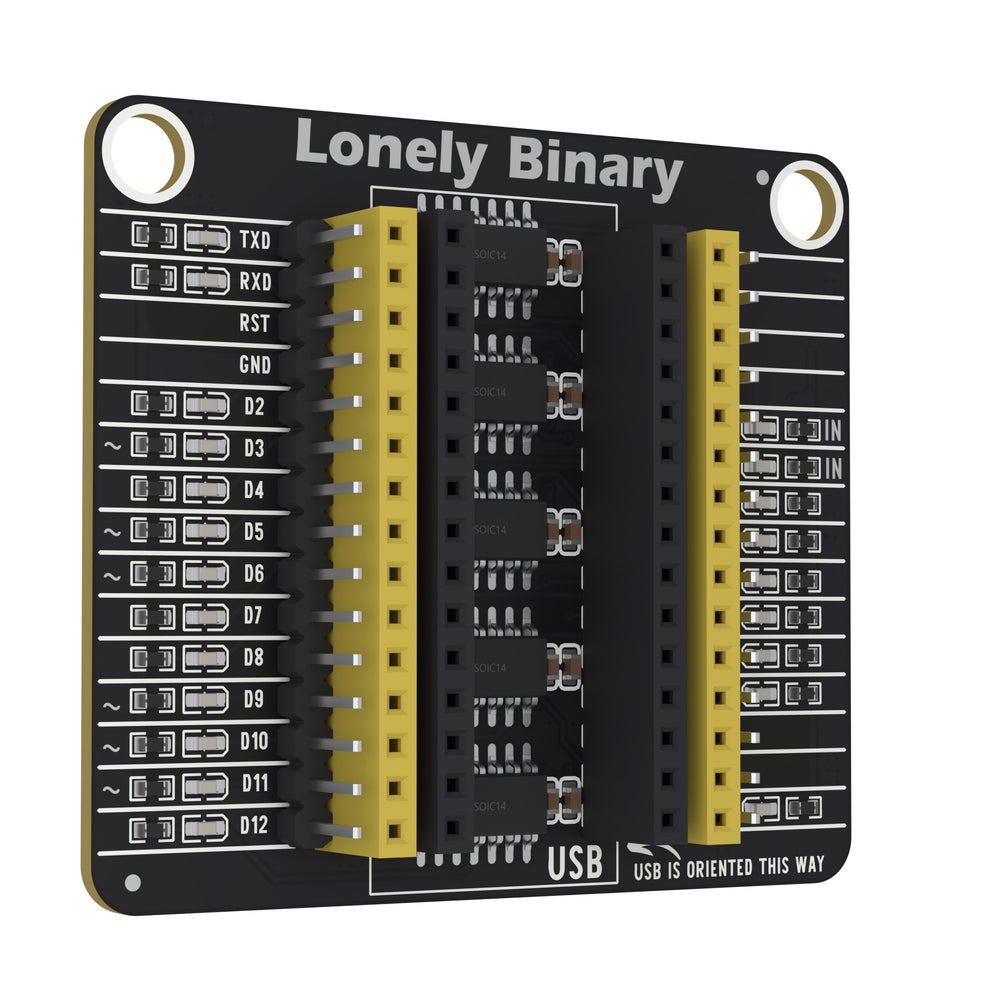

- Male and female on every pin. Dual 2.54 mm headers take any jumper wire type.

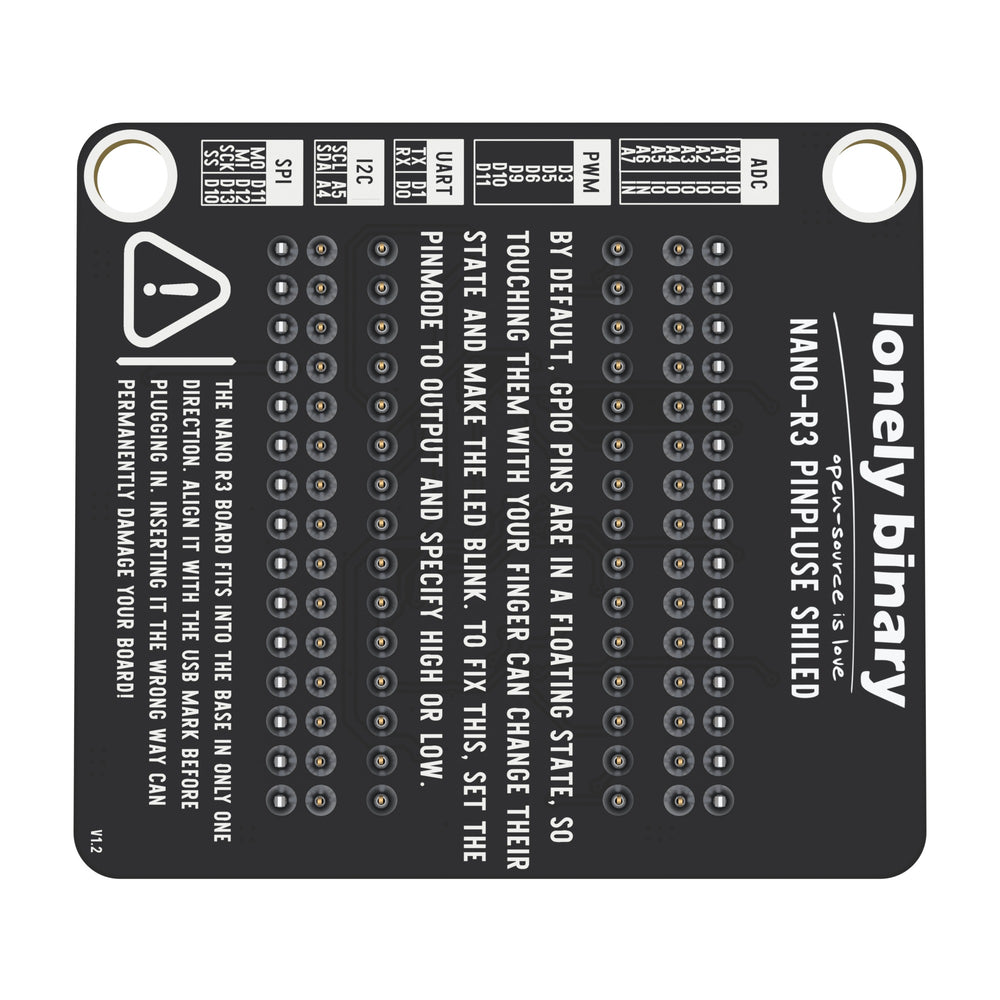

- Labelled. Pin names are printed on the top, and the bottom carries an SPI, I2C, UART, PWM and ADC pin map.
- Arduino IDE compatible. Existing Nano sketches and libraries work as they are.
In the box
- 1 × PinPulse shield
The Nano board is not included.
Specifications
- Fits: Nano V3.0 (ATmega328P)
- LEDs: 22, one per pin (TX, RX, D2 to D13, A0 to A7)
- LED driver: 5 × SN74HC04 hex inverter
- Headers: 2.54 mm, male and female on every pin
Works with
Nano V3.0 boards and the Arduino IDE.
Questions
Expansion
PinPulse LED Shield for Nano, 22 Pin Status LEDs
SKU nanopinpulse
$9.99incl. tax
In stock · ships within one business day
Buy more, save moreup to 20% off
3+ items5% off$9.49 USD each
10+ items10% off$8.99 USD each
25+ items15% off$8.49 USD each
100+ items20% off$7.99 USD each
Free shipping over $35
- Ships worldwide
- 30-day returns
- 12-month warranty
