Description

Three ESP32 boards with a built-in LiPo charger that keeps your program running when USB-C is unplugged, plus three shields.

Highlights

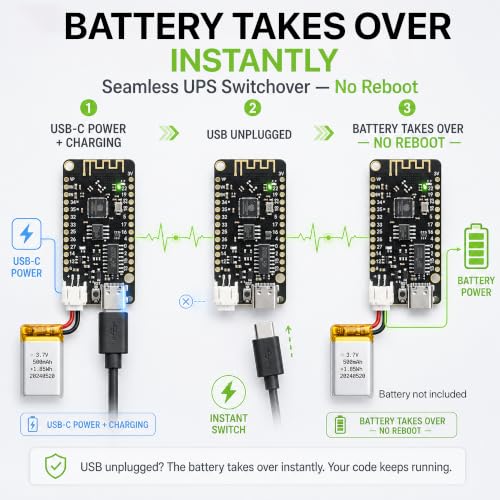

• Keeps running off USB. The power path runs the board from USB while the battery charges, then switches to the battery without a reset.
• 500 mA charger. For a single-cell 3.7 V LiPo or protected 18650 on the JST-PH 2.0 port (battery not included).
• Battery monitoring. Bridge the BATTERY MONITOR pads on a shield to read the battery on IO36 through a 1:2 divider.

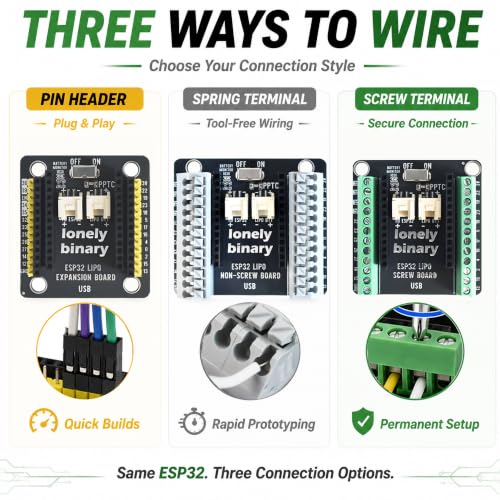

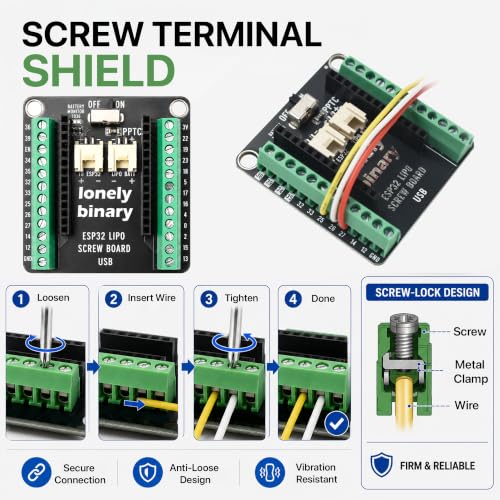

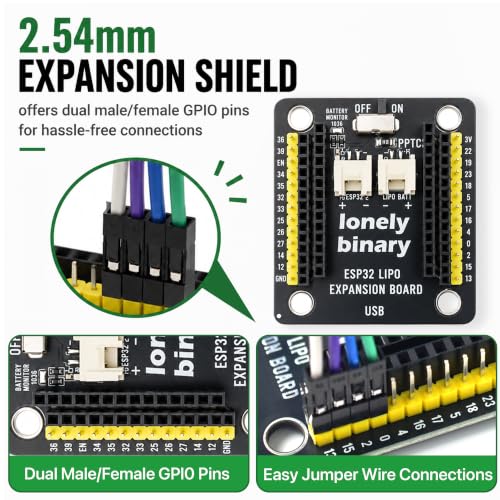

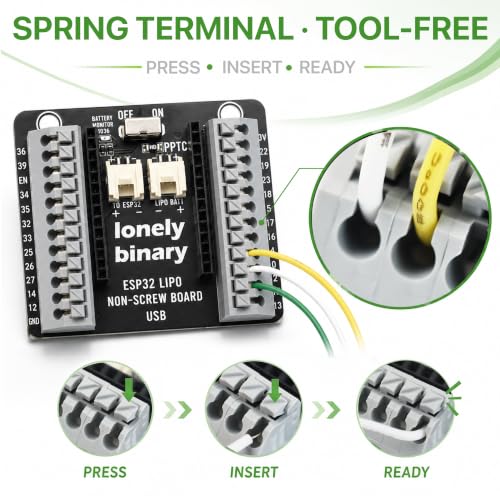

• Three shields. 2.54 mm header, spring terminal and screw terminal, each with its own on/off switch and fully assembled.
• Solder the headers. Header strips ship unfitted.

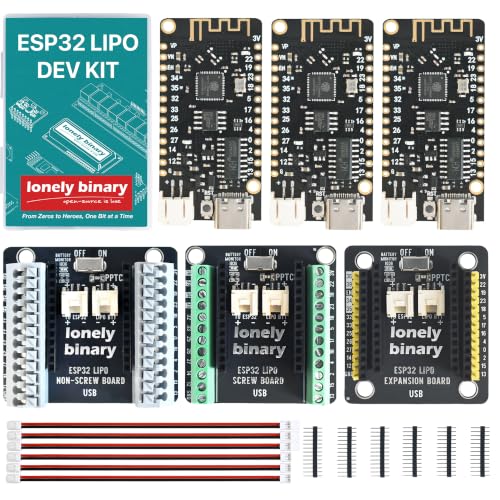

In the box

• 3 × ESP32 LiPo board (header strips not fitted)
• 3 × shield: 2.54 mm header, spring terminal, screw terminal
• 6 × JST PH 2.0 cable
• 6 × male header strip
• 1 × storage case

Specifications

• Flash: 4 MB
• Wireless: 2.4 GHz Wi-Fi, Bluetooth
• USB: USB-C, CH340 serial
• Charging: 500 mA
• Battery: 3.7 V, one cell, JST-PH 2.0

Works with

Arduino IDE, MicroPython and ESP-IDF on macOS, Windows and Linux.
