Description
Description

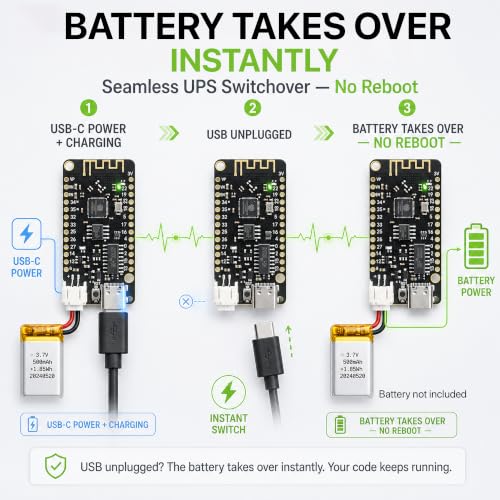

- UNPLUG USB. CODE KEEPS RUNNING. A dedicated power-path circuit runs the board from USB while the battery charges, then hands over to the battery the instant USB-C is removed - without the voltage dip that resets most charger boards. No reboot, no reset, no gap in your program. Built into the board itself, so it works with or without a shield.
- 3x ESP32 BOARDS — 6 HEADER STRIPS INCLUDED, UNSOLDERED Six header strips ship in the box; you solder them onto the 3 boards before use. The 3 shields arrive fully assembled and need no soldering at all. Each board: dual-core ESP32, 4MB Flash, Wi-Fi 2.4GHz and Bluetooth, USB Type-C for power and programming (CH340 serial), and a 500mA LiPo charger.

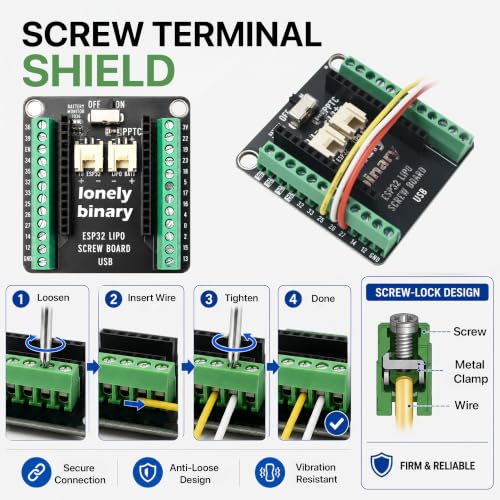

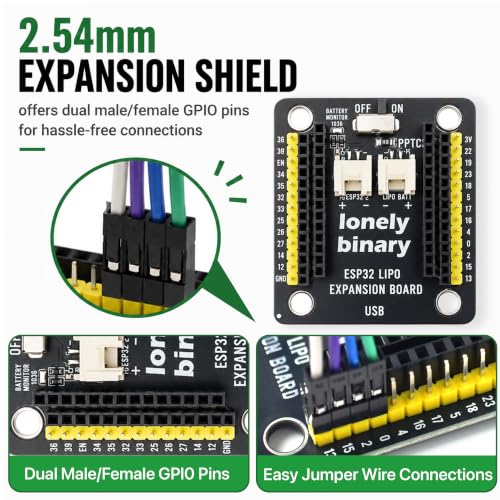

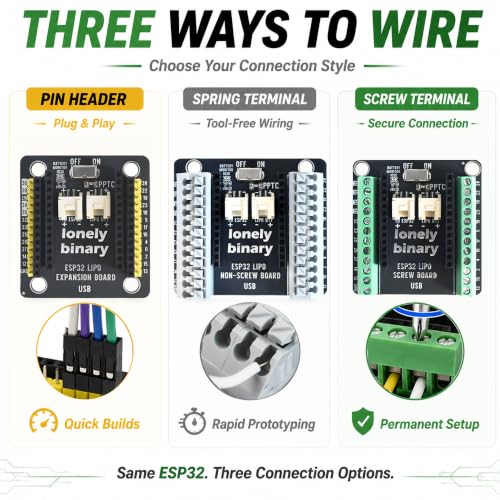

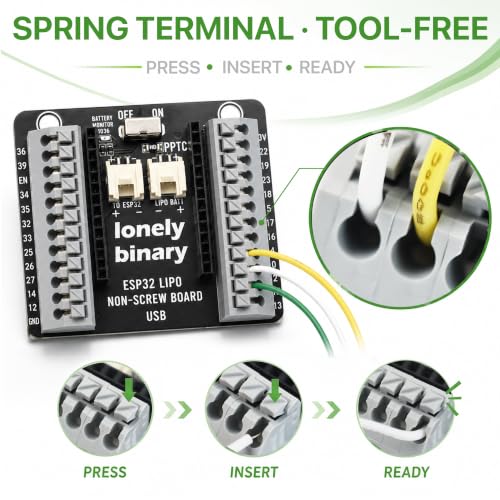

- 3 SHIELDS, 3 WAYS TO WIRE One of each, by design: 2.54mm pin header for fast jumper changes, spring terminal for tool-free rewiring, and screw terminal for the most secure, vibration-resistant hold. All three shields arrive fully assembled — no soldering needed on the shields.

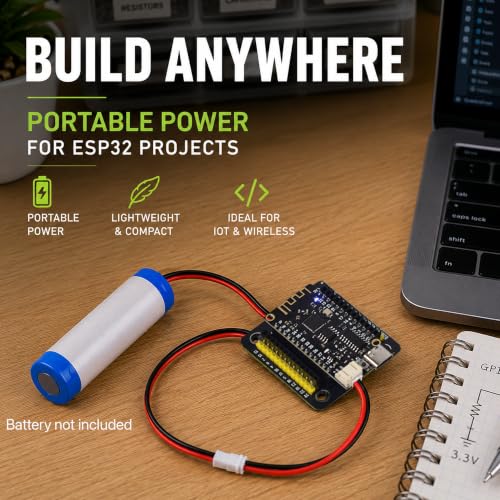

- JST-PH 2.0 BATTERY PORT + LEVEL MONITORING Plug a single-cell 3.7V lithium battery — LiPo pouch or protected 18650, not included — into the JST-PH 2.0 port. Bridge the BATTERY MONITOR pads on a shield to read battery voltage on IO36 through a 1:2 divider. Every shield has its own on/off switch.

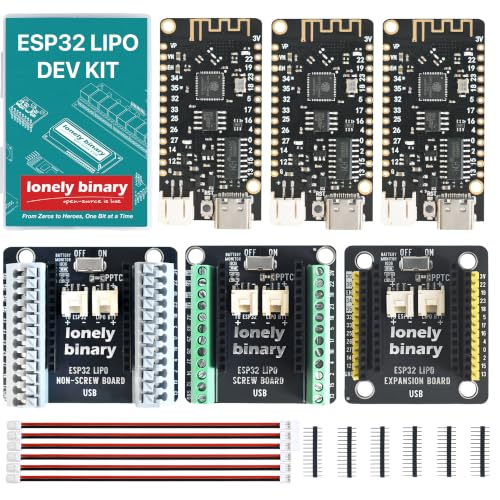

- ARDUINO IDE, MicroPython, ESP-IDF Develop on macOS, Windows or Linux for wireless sensors, data loggers and battery-backed builds. Includes 3 boards, 3 shields, 6 connection cables, 6 header strips (unsoldered), a USB-C cable and a storage case. Battery not included. Australian-designed and supported.
Specifications
| Brand | LONELY BINARY |
|---|---|
| Model Name | 3-Pack ESP32 Board with LiPo Charger + 3 Shields |
| Memory Storage Capacity | 4 MB |
| Connectivity Technology | Bluetooth, USB, Wi-Fi |
| Included Components | 3 x ESP32 Development Board with LiPo Charger (header strips included, unsoldered), 3 x Expansion Shield (2.54mm Pin Header, Spring Terminal, Screw Terminal), 6 x JST-PH 2.0 Connection Cable, 6 x Male Header Strip 3 x ESP32 Development Board with LiPo Charger (header strips included, unsoldered), 3 x Expansion Shield (2.54mm Pin Header, Spring Terminal, Screw Terminal), 6 x JST-PH 2.0 Connection Cable, 6 x Male Header Strip |
