ESP32-S3 PinPulse Shield, 36 GPIO LEDs

$11.99

Buy more, save more

3+ items 5% off $11.39 USD each
10+ items 10% off $10.79 USD each
25+ items 15% off $10.19 USD each
100+ items 20% off $9.59 USD each

Applied automatically in your cart to the whole order, by the total number of items. Prices are approx. Click a row to set the quantity.

Tax included Shipping calculated at checkout.

Free ESP32-S3 guidesWiring, example code and projects, on Lonely Binary Learn

Warranty and returns

12-month warranty on everything we sell. If a part is faulty, we'll replace or refund it and cover the return postage. Damage from soldering, wiring mistakes or modification isn't covered.

Changed your mind? Return it unused within 30 days for a full refund, with no restocking fee.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. Full returns policy

Shipping

Free standard shipping within Australia on orders over A$55. Under A$55, standard shipping is A$6.95.

New Zealand A$8.99. Rest of the world A$14.95, flat rate.

Orders ship from Macquarie Park, NSW within one business day of payment when the item is in stock. Shipping policy

Description

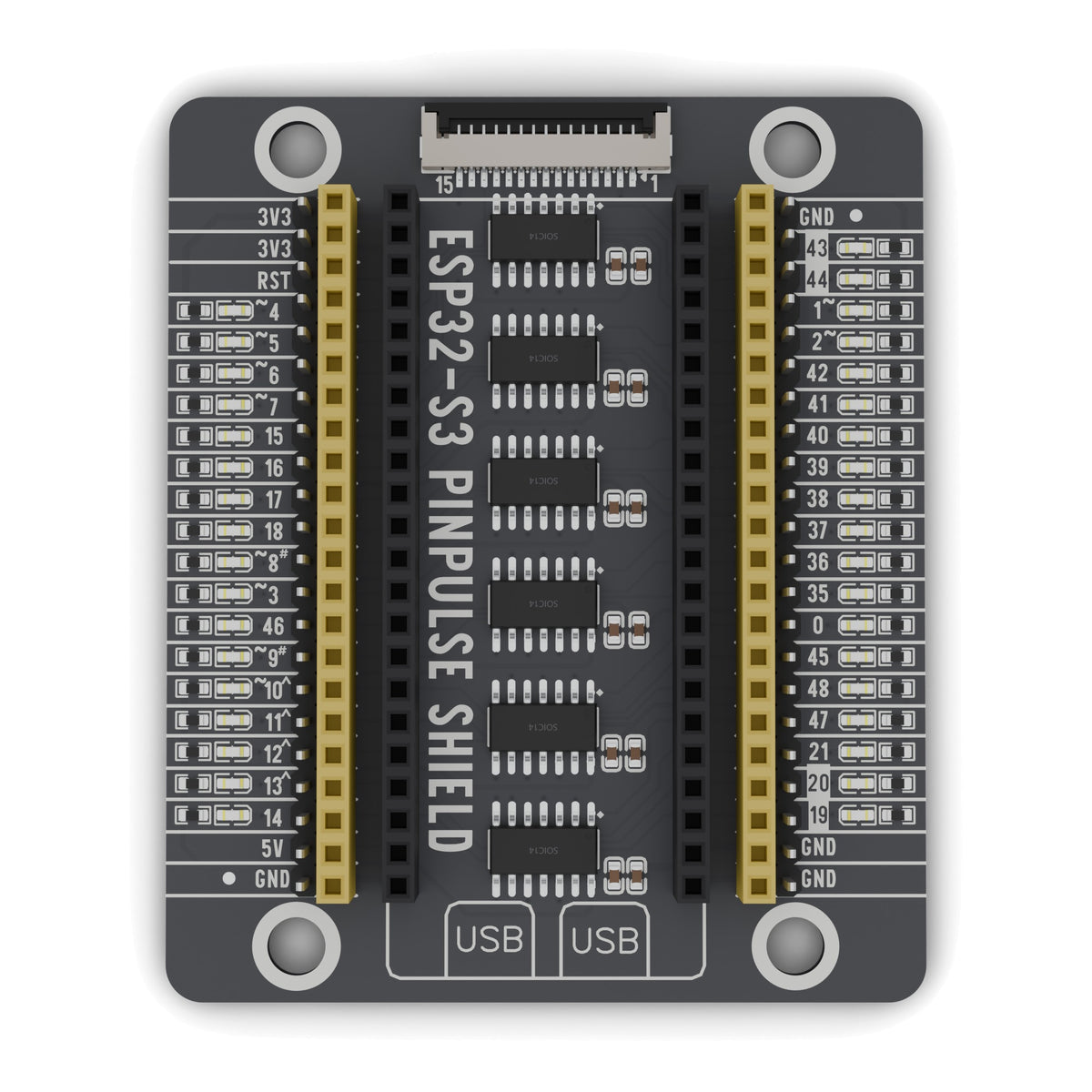

The PinPulse shield for the ESP32-S3: an LED on every GPIO, so you can see pin states as your code runs. The ESP32-S3 board plugs into the two black sockets in the middle; every pin comes out again at the edge.

Highlights

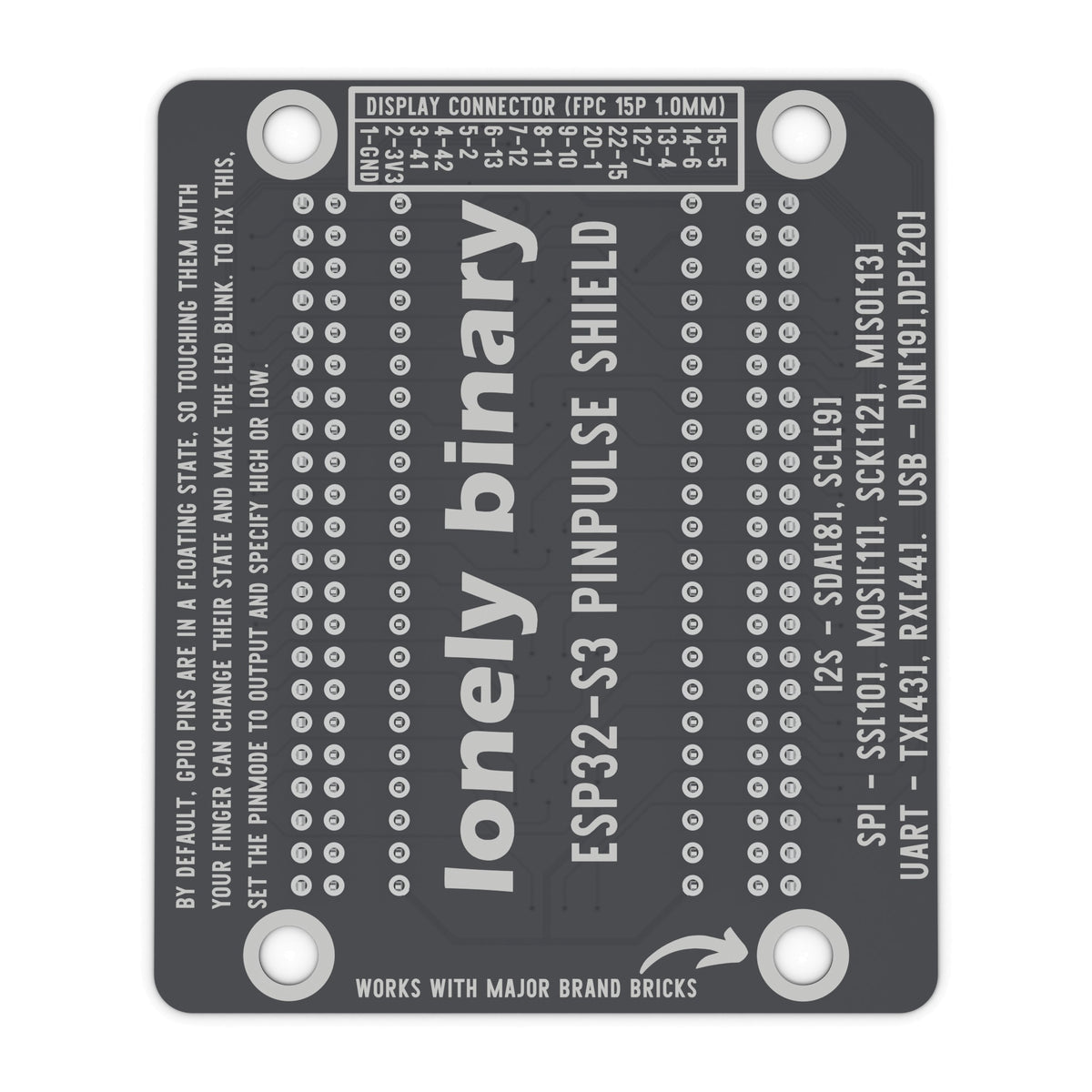

36 GPIO LEDs. Driven through inverter chips, so the LEDs show HIGH and LOW without loading SPI, I2C, UART or PWM signals.
Pins and sockets. Every GPIO has both a male pin and a female socket, taking any jumper wire.
Display port. A 15-way FPC connector links Lonely Binary TFT, E-Ink and touch displays with one ribbon cable (displays sold separately).
Four mounting holes for a case or a baseplate.

In the box

1 × ESP32-S3 PinPulse shield

The ESP32-S3 board is not included. For the shield with an ESP32-S3 Gold Edition (N16R8) board, see the ESP32-S3 Gold Edition + PinPulse Shield set.

Specifications

GPIO LEDs: 36, one per GPIO
Edge rows: 2 × 22 pins and sockets a side
Display connector: 15-way FPC
